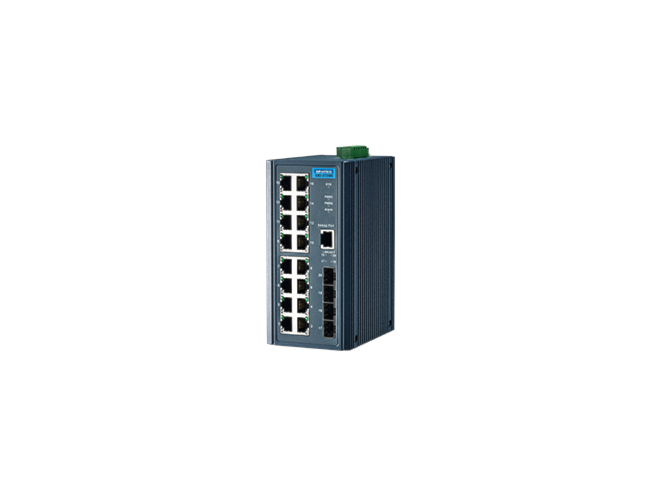

Advantech EKI-2720G-4F-AE

16+4G Port Full Gigabit Unmanaged Ethernet Switch, 12~48VDC.

$690.00
Part Number
  • EKI-2720G-4F-AE
Highlights...

Features

  • EMI: CE, FCC Class A
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN50121-4
  • Safety: UL 61010, NEMA TS2
  • Temperature (Max. Operating): 60°C (140°F)
  • Fiber Port Interface: SFP
  • Fiber Port Connector Type: SFP cage
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Transmission Speed: 100/1000 Mbps
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (DIN-rail): Yes
  • Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
  • IP Rating: IP30
  • Weight: 1.1 kg
  • Support PoE: No
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: 15W
  • Power Input (DC): 12 ~ 48 VDC
  • Power Operating Current: 0.25A @ 48VDC (system)
  • Redundant Dual Inputs: Yes
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 40Gbps
  • Warranty Period: 5 years
  • 16 x Gigabit Ethernet ports + 4 x SFP ports
  • SFP socket for easy and flexible fiber expansion
  • NEMA TS2 for traffic control
  • EN50121-4 approval for railway trackside deployment
  • Wide operating temperature range of -40 ~ 75°C (EKI-2720G-4FI)
  • Dual 12 ~ 48 VDC power input and 1 x relay output
The EKI-2720G-4F and EKI-2720G-4FI provide users with abundant port options to connect to a range of different device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. The EKI-2720 series features a wide operating temperature and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
