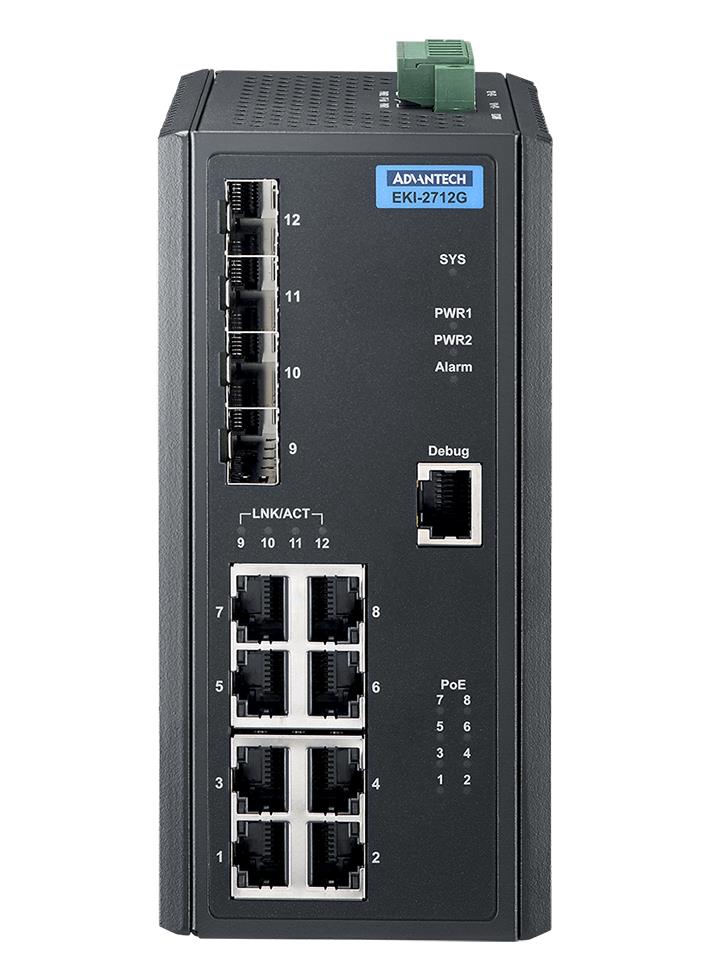

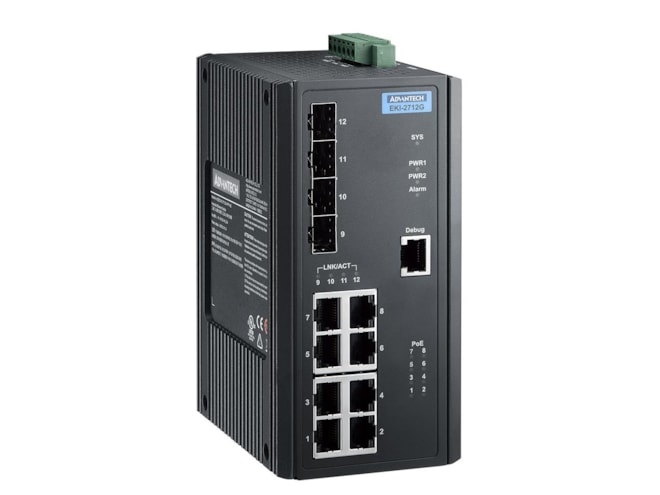

Advantech EKI-2712G-4FPI-AE

12 Port Gigabit Unmanaged Ethernet Switch with 8 PoE+ port,-40~75℃,48VDC.

Call for pricing
Part Number
  • EKI-2712G-4FPI-AE
Highlights...

Features

  • Mounting: DIN
  • Power: 48VDC
  • EMI: CE, FCC Class A
  • EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN50121-4
  • Unmanaged: Yes
  • Safety: UL 61010, NEMA TS2
  • Temperature (Max. Operating): 75°C (167°F)
  • Fiber Port Interface: SFP
  • Fiber Port Connector Type: SFP cage
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Transmission Speed: 100/1000 Mbps
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (DIN-rail): Yes
  • Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
  • IP Rating: IP30
  • Weight: 1.1 kg
  • PoE Budget: 240W
  • PoE Output: 30W/ port
  • Support PoE: Yes
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Consumption: 12.1W (system)
  • Power Input (DC): 46 ~ 57 VDC
  • Power Operating Current: 0.25A @ 48VDC (system)
  • Redundant Dual Inputs: Yes
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 4.1M bit
  • Switch Fabric Speed: 24Gbps
  • Warranty Period: 5 years
  • Dual 48 VDC power input and 1 x relay output
  • EN50121-4 approval for railway trackside deployment
  • NEMA TS2 for traffic control
  • SFP socket for easy and flexible fiber expansion
  • 8 x IEEE 802.3 af/at PoE Gigabit ports + 4 x SFP ports
EKI-2712G-4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). The switch also features a wide operating temperature range from -40° to 75°C and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. The EKI-2712G also has successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.
