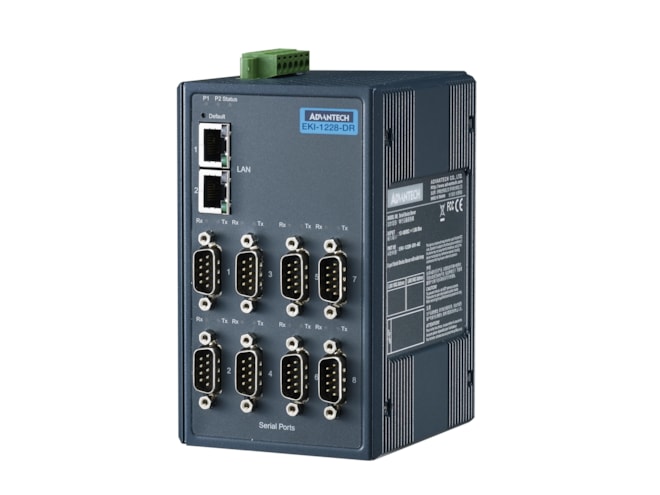

Advantech EKI-1228-DR-AE

Features

• EMC: CE, FCC
• EMI: EN 55011/ EN 55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
• EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
• Freefall: IEC 60068-2-32
• Safety: UL 60950-1
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Relative Humidity: 10~95%
• Ethernet Standard: IEEE 802.3 , 802.3u
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Speed: 10/100 Mbps
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: 5W
• Power Operating Current: 1A @ 24 VDC
• Dimensions (W x H x D): 86 x 140 x 95 mm
• Enclosure (Metal): Metal
• Mounting: DIN-rail, Wall mount
• Weight: 9 kg
• Configuration: Windows utility, Telnet console, Web Browser
• Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
• Protocols: Modbus RTU, Modbus TCP, Modbus ASCII
• Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
• Automatic RS-485 data flow control
• Built-in 15 KV ESD protection for all serial signals
• Mounts on DIN-rail and Wall mount
• Software selectable RS-232/422/485 communication
• Support up to 16 connections on each serial port under Modbus Client mode and 128 sessions under Modbus Server mode.
• Supports up to 921.6 kbps, and any baud rate setting
• Integration of Modbus TCP and Modbus RTU/ASCII networks
• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
