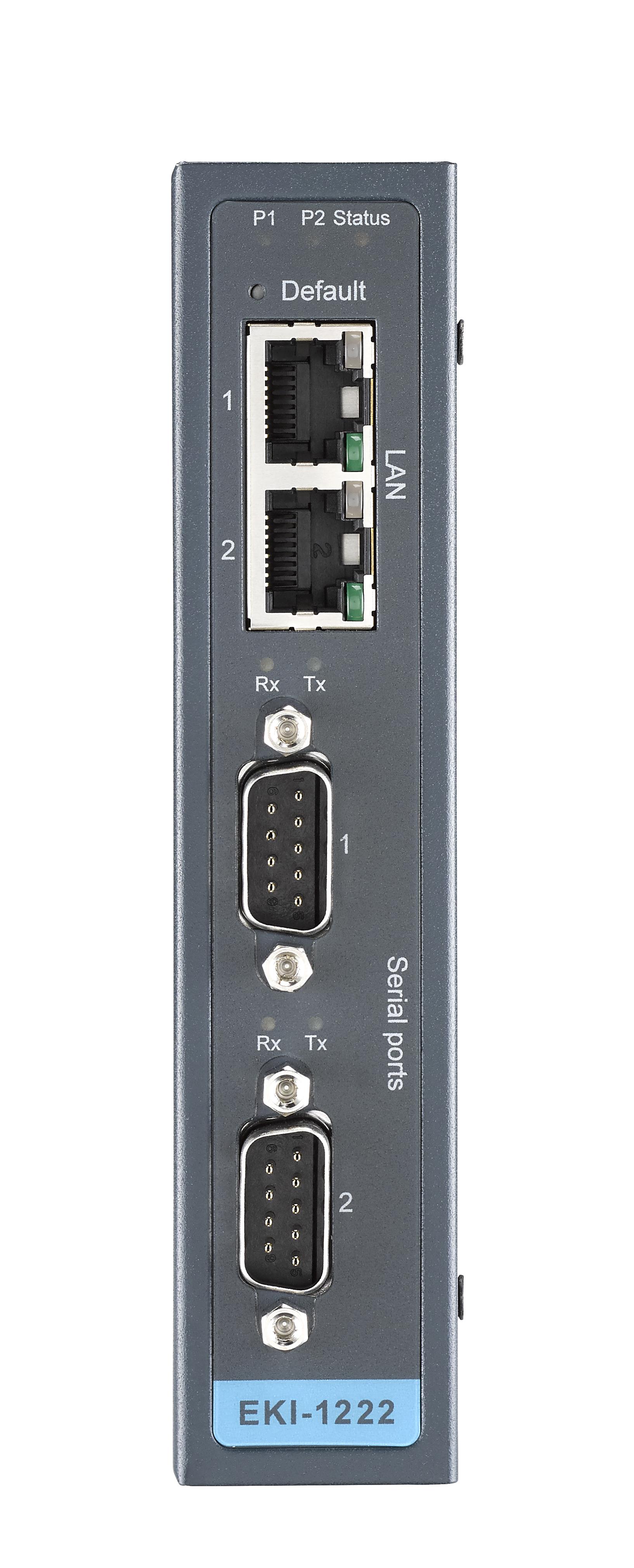

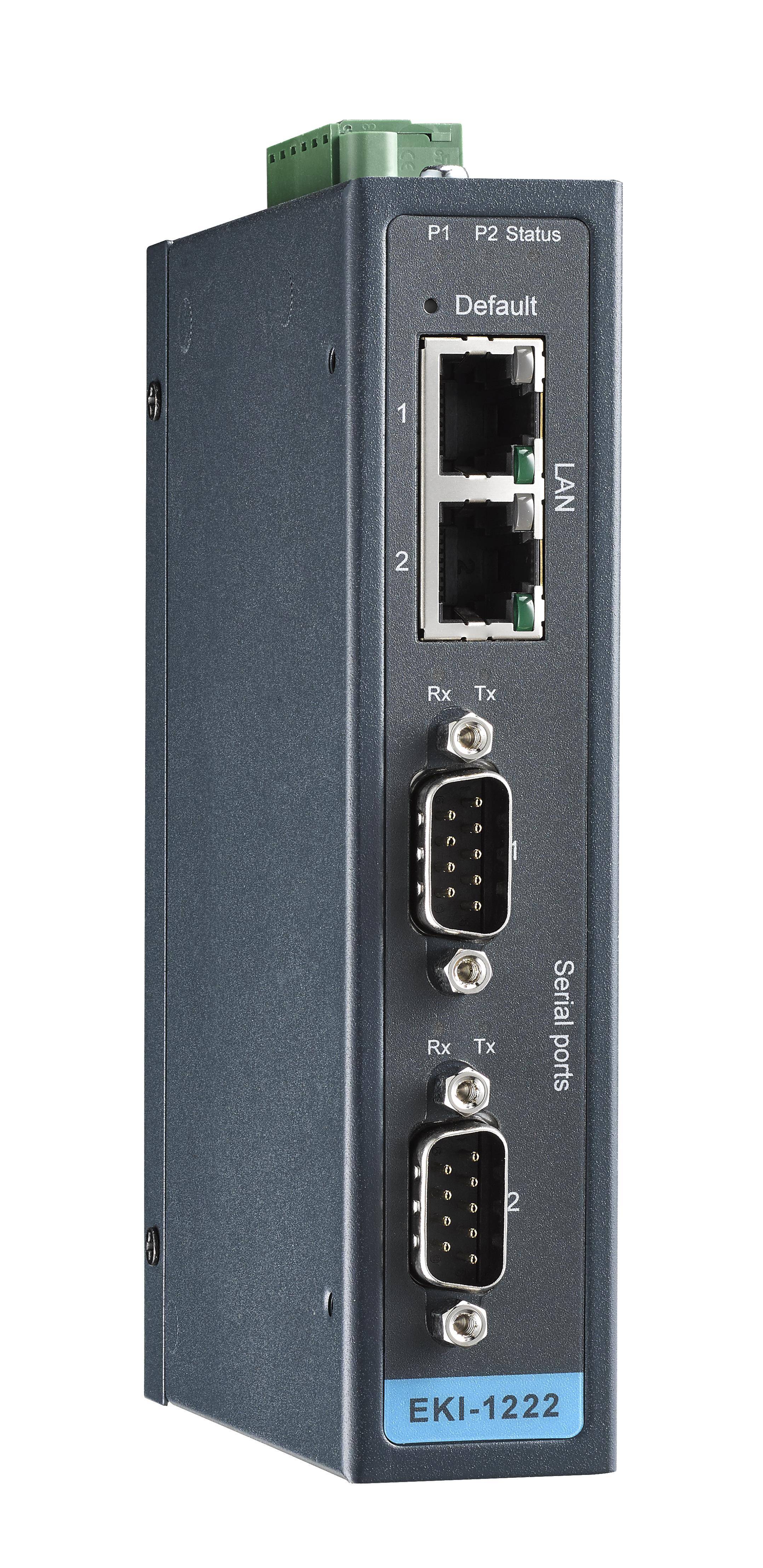

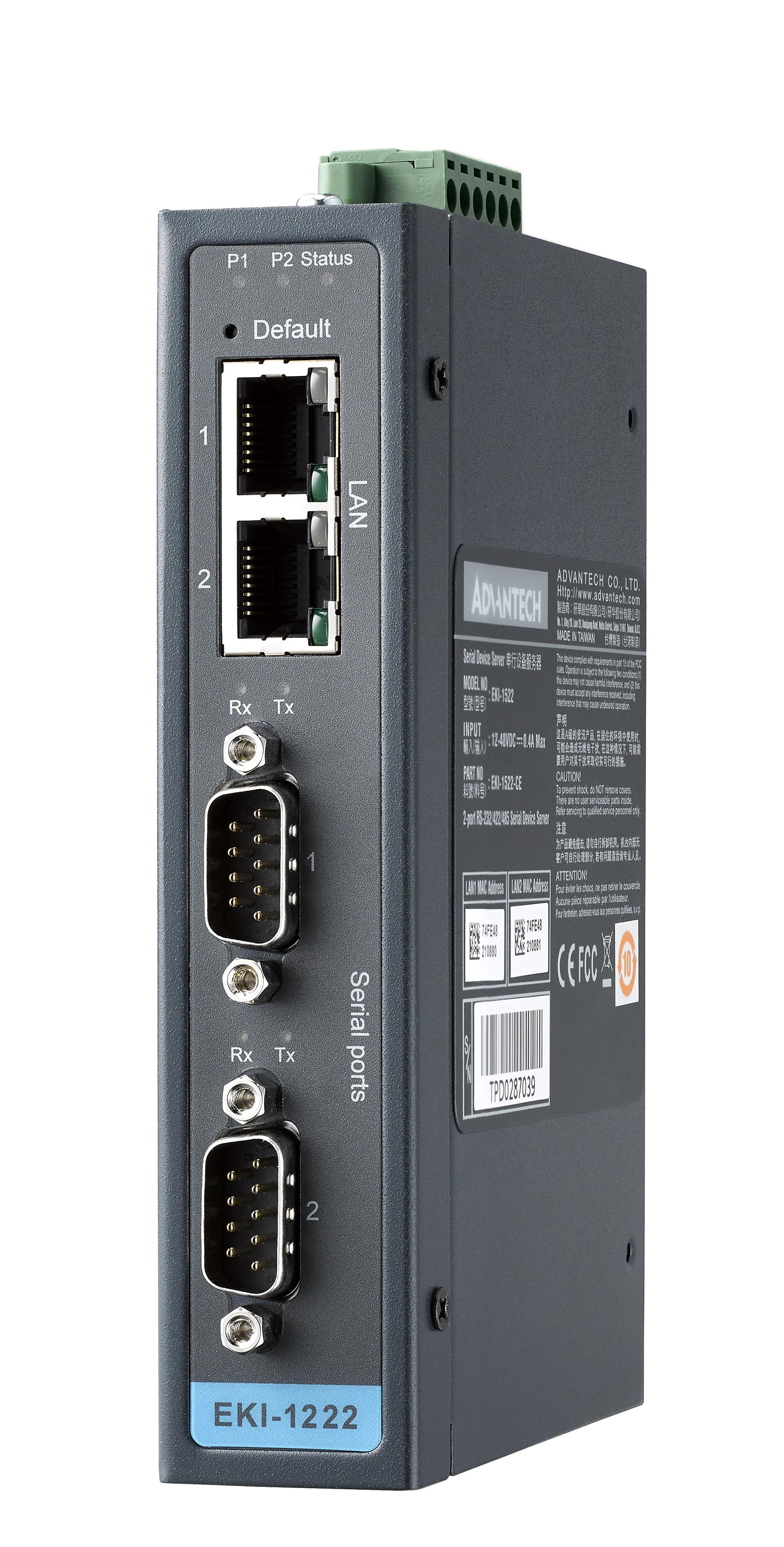

Advantech EKI-1222I-CE

Features

• EMC: CE, FCC
• EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
• EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
• Freefall: IEC 60068-2-32
• Safety: IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Ethernet Standard: IEEE 802.3 , 802.3ab , 802.3u
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Speed: 10/100 Mbps
• Dimensions (W x H x D): 36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.)
• Enclosure (Metal): Metal with solid mounting hardware
• IP Rating: IP30
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Weight: 0.48 kg
• Power Consumption: 3.2W
• Power Operating Current: 0.7A @ 24 V
• Power Input (DC): 12 ~ 48 VDC, redundant dual inputs
• Redundant Dual Inputs: Yes
• RS-232: Yes
• RS-422: Yes
• RS-485: Yes
• Serial Port Connector Type: DB9 male
• Reverse Polarity: Present
• Baud Rate: 50 ~ 921.6 Kbps
• Configuration: Windows utility, Web Browser
• Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
• Operation Mode: Modbus RTU Client/Server, Modbus ASCII Client/Server
• Modbus TCP: Yes
• Modbus RTU: Yes
• Modbus ASCII: Yes
• Ethernet: Yes
• Warranty Period: 5 years
• Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV.
• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
• Integration of Modbus TCP and Modbus RTU/ASCII networks
• Supports up to 921.6 kbps, and any baud rate setting
• support up to 16 connections on each serial port under Modbus Client mode and 32 sessions under Modbus Server mode.
• Software selectable RS-232/422/485 communication
• Mounts on DIN-rail and Wall mount
• Built-in 15 KV ESD protection for all serial signals
• Automatic RS-485 data flow control
