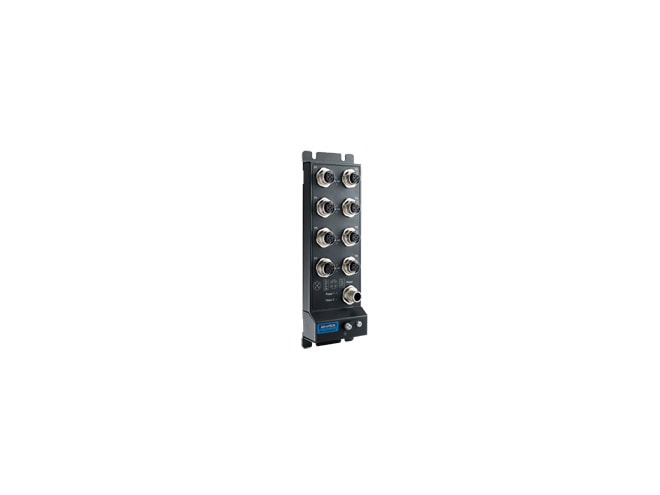

Advantech EKI-2528I-M12-AE

8 10/100Mbps M12 Unmanaged Ethernet Switch, IP67 Rating.

$540.75
Part Number
  • EKI-2528I-M12-AE
Highlights...

Features

  • EMI: EN 61131-2, CE, CE-LVD, FCC Class A
  • EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
  • Safety: UL 61010
  • Temperature (Max. Operating): 75°C (167°F)
  • RJ-45 Port Connector Type: M12
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 62 x 194 x 25 mm (2.44 x 7.63 x 1.00 in.)
  • IP Rating: IP67
  • Support PoE: No
  • Power Consumption: 1.92W
  • Power Input (DC): 12 ~ 48 VDC
  • Redundant Dual Inputs: Yes
  • Warranty Period: 5 years
  • Overload Current: Present
  • Reverse Polarity: Present
  • M12 Connectors and IP67 housing
  • Provides 8 fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps auto-negotiation
  • Complies with IEC 61131-2 specifications
  • Supports redundant 12 ~ 48 VDC power input
  • Supports wide operating temperature range from -40 to 75 °C
  • Complies with EN50155
The EKI-2528I-M12 unmanaged switches are designed for application in harsh environments. First of all, the switches provide 8 Fast Ethernet ports with M12 D-coded connectors which can connect the cables tightly against vibration and shock. Second, the switches support 10/100 Mbps, auto MDI/MDI X, broadcast storm protection. Third, when supporting wide power input ranging from 12 to 48V with Polarity Reverse Protection and Overload Current Resettable Fuse, the EKI-2528I-M12 switches are robust and economical solutions for your network. Finally, as the switches are IP67-rated and is compliant with IEC 61131-2:2017, they are suitable for PLC application and their associated peripherals.
