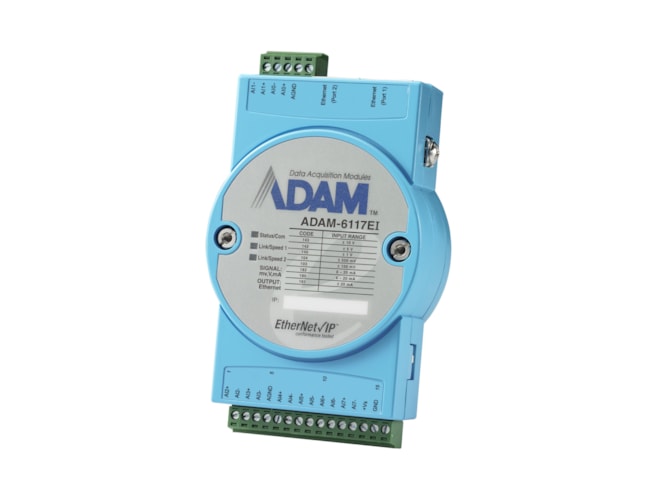

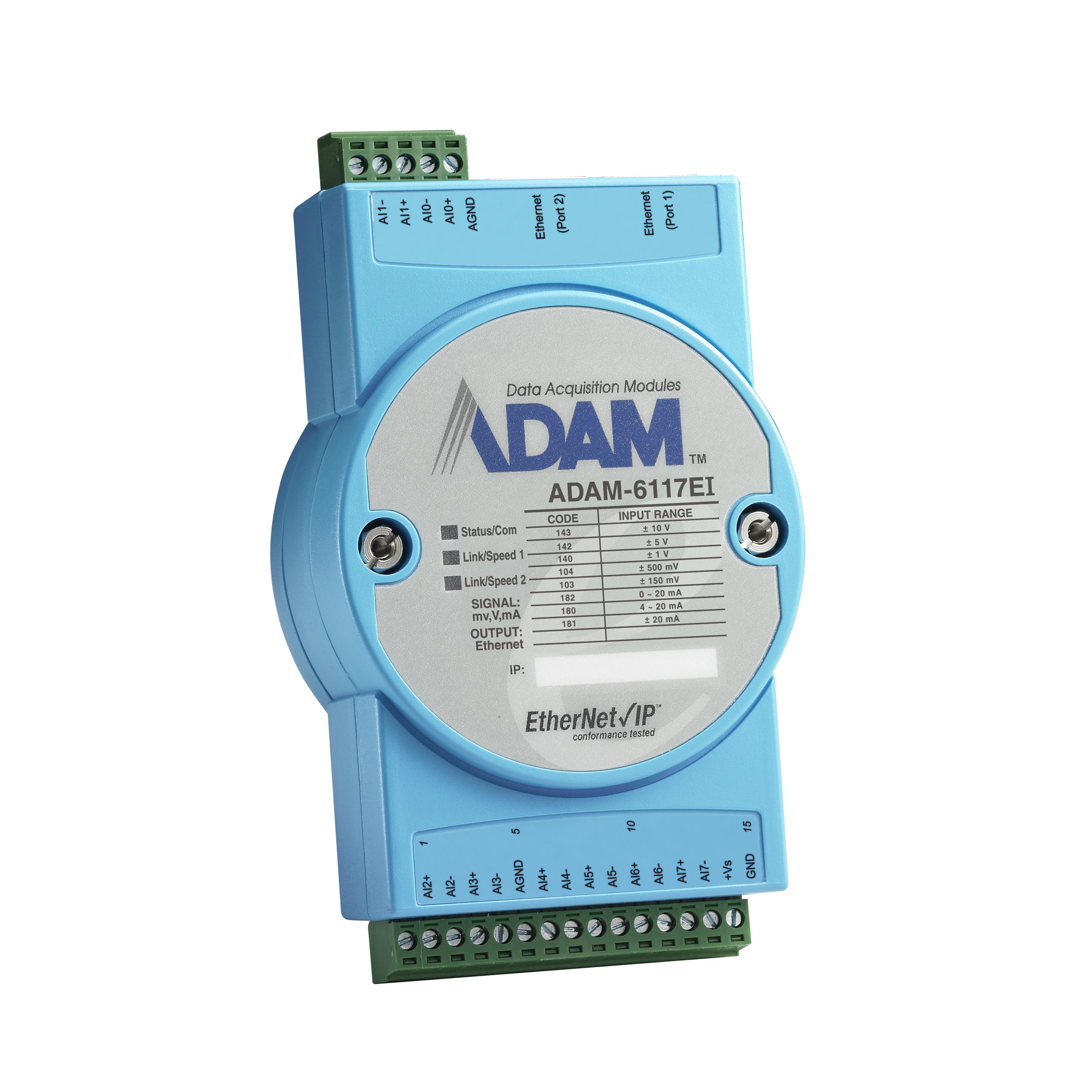

Advantech ADAM-6117EI-AE

8AI EtherNet/IP Fieldbus Remote I/O.

$613.20
Part Number
  • ADAM-6117EI-AE
Highlights...

Features

  • Input Range: ±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA
  • lnput Type: V, mV, mA
  • Resolution(Bits): 16-bit
  • Sampling Rates(S/s): 10 S/s (sum)
  • Interface: Ethernet
  • Isolation Voltage: 2,500 VDC
  • Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
  • Protocol: Ethernet/IP
  • Input Voltage: 10~30 VDC
  • 8ch analog input(voltage or current)
  • Protocol : EtherNet/IP
  • 2 x RJ-45 LAN for Daisy-chain connectivity
  • 2500VDC isolation protection
Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6117EI, 8-ch Isolated Analog Input EtherNet/IP Module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.
