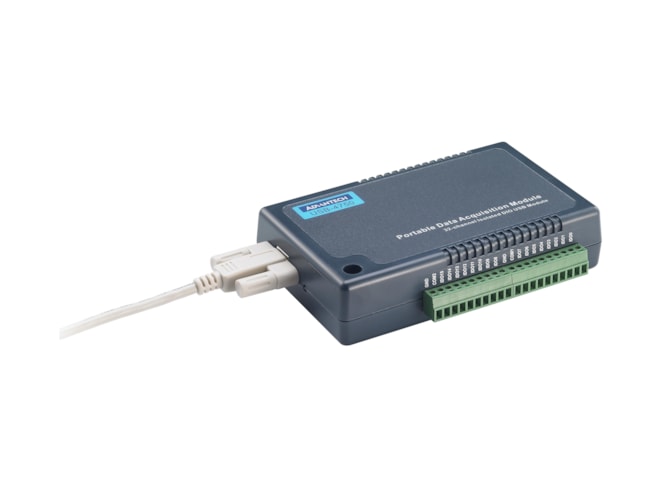

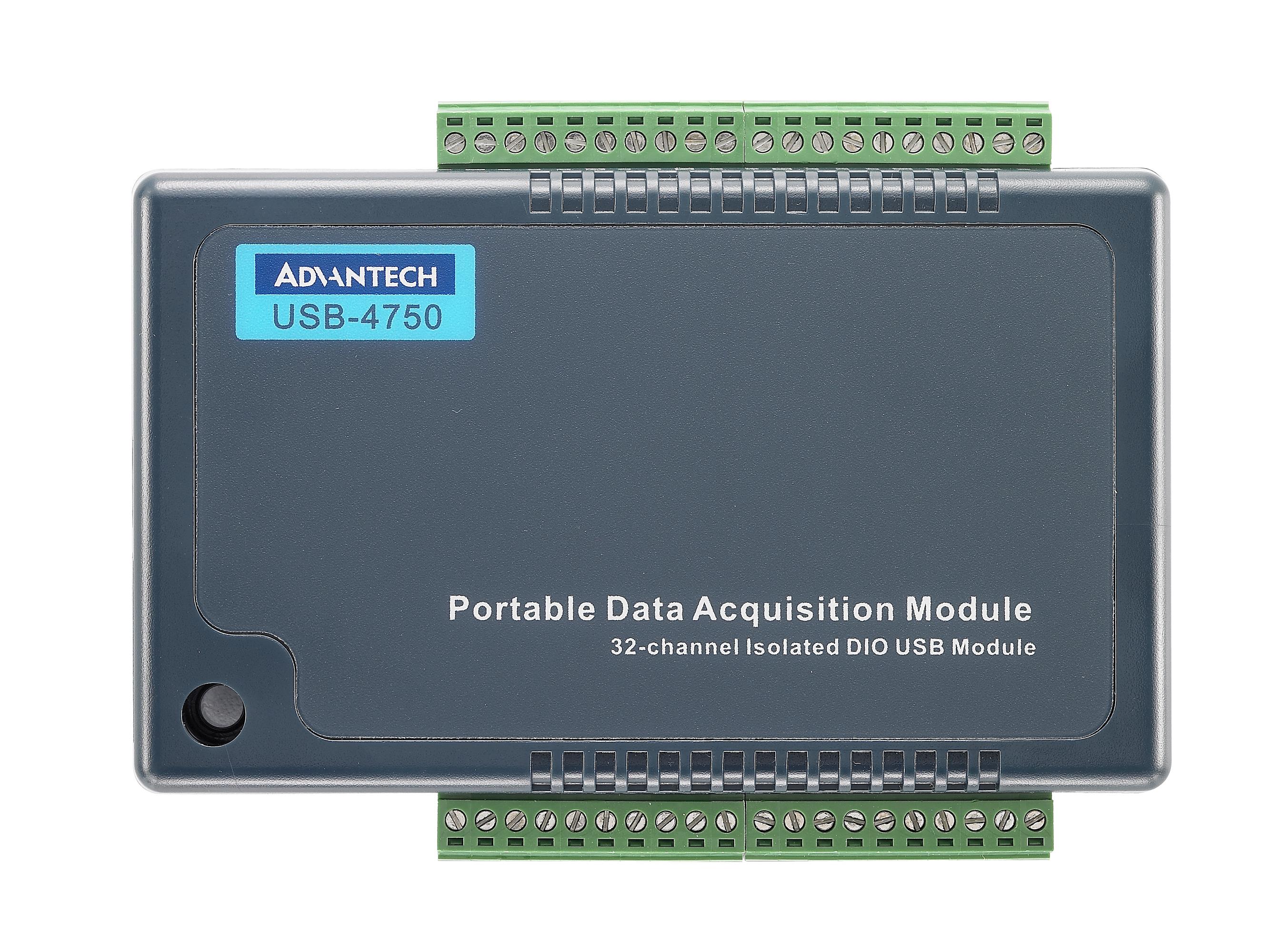

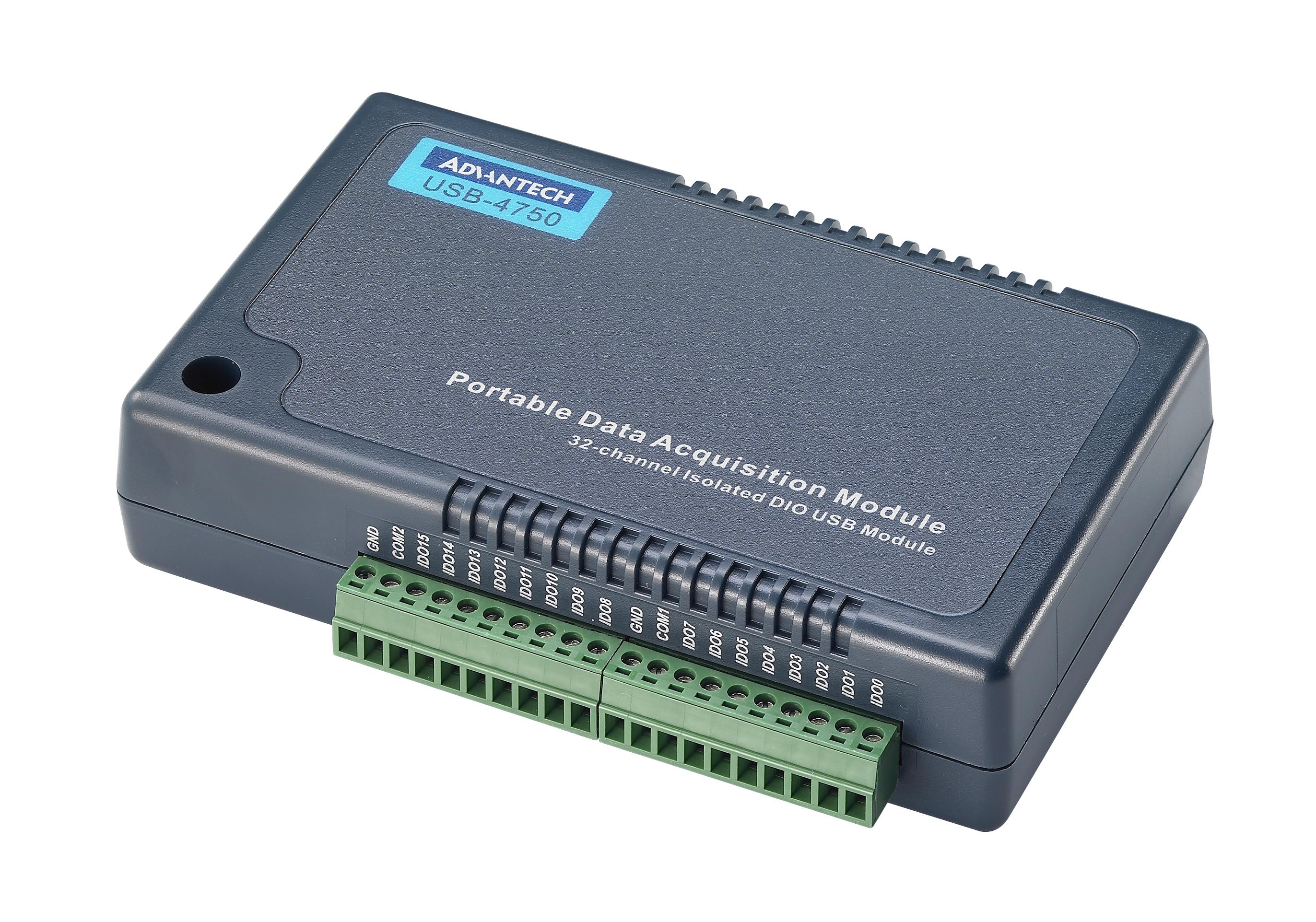

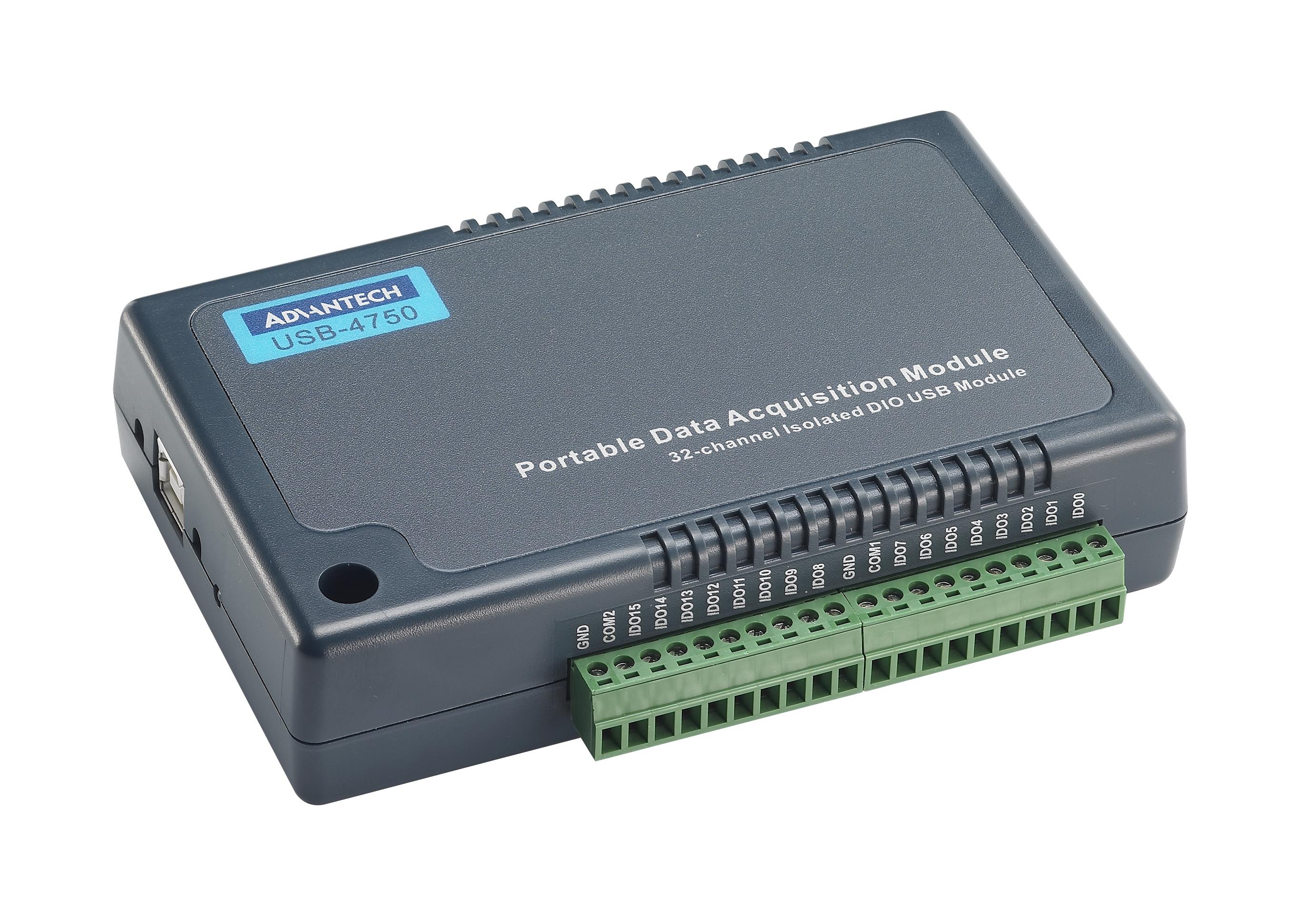

Advantech USB-4750-CE

32-CH Isolated DIO USB Module.

$273.00
Part Number
  • USB-4750-CE
Highlights...

Features

  • Channels: 16 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Channels: 16 (Isolated)
  • Isolation Protection: 2,500 VDC
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Compatible with USB 1.1/2.0
  • Bus-powered
  • 16 isolated DI and 16 isolated DO channels
  • High voltage isolation on all channels (2500 VDC)
  • High sink current on isolated output channels (200 mA/Channels)
  • Supports 5 ~ 60 VDC isolated input channels
  • Interrupt handling capability
  • Timer/Counter capability
  • Suitable for DIN-rail mounting
  • One lockable USB cable for secure connection included
The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4750 is a 32-channel isolated digital I/O module. With isolation protection of 2,500 VDC, and dry contact support, USB-4750 is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the USB-4750 corresponds to a bit in an I/O port. This makes USB-4750 very easy to program. This module also offers a counter or timer and one digital input interrupt lines to a PC. So users can then easily do configurations by software. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4750 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4750 is fully USB plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.
