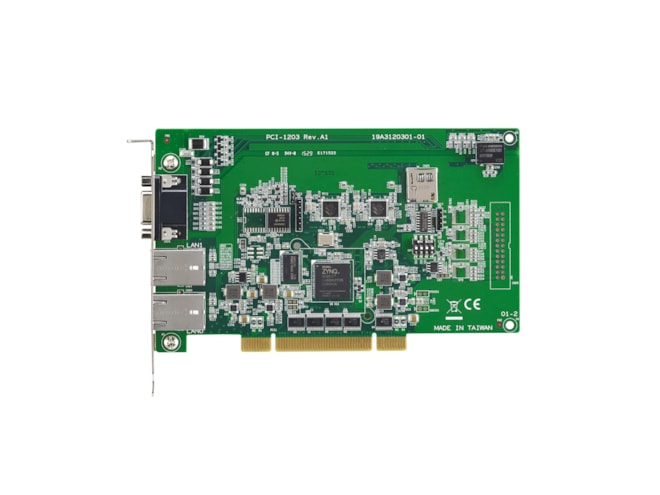

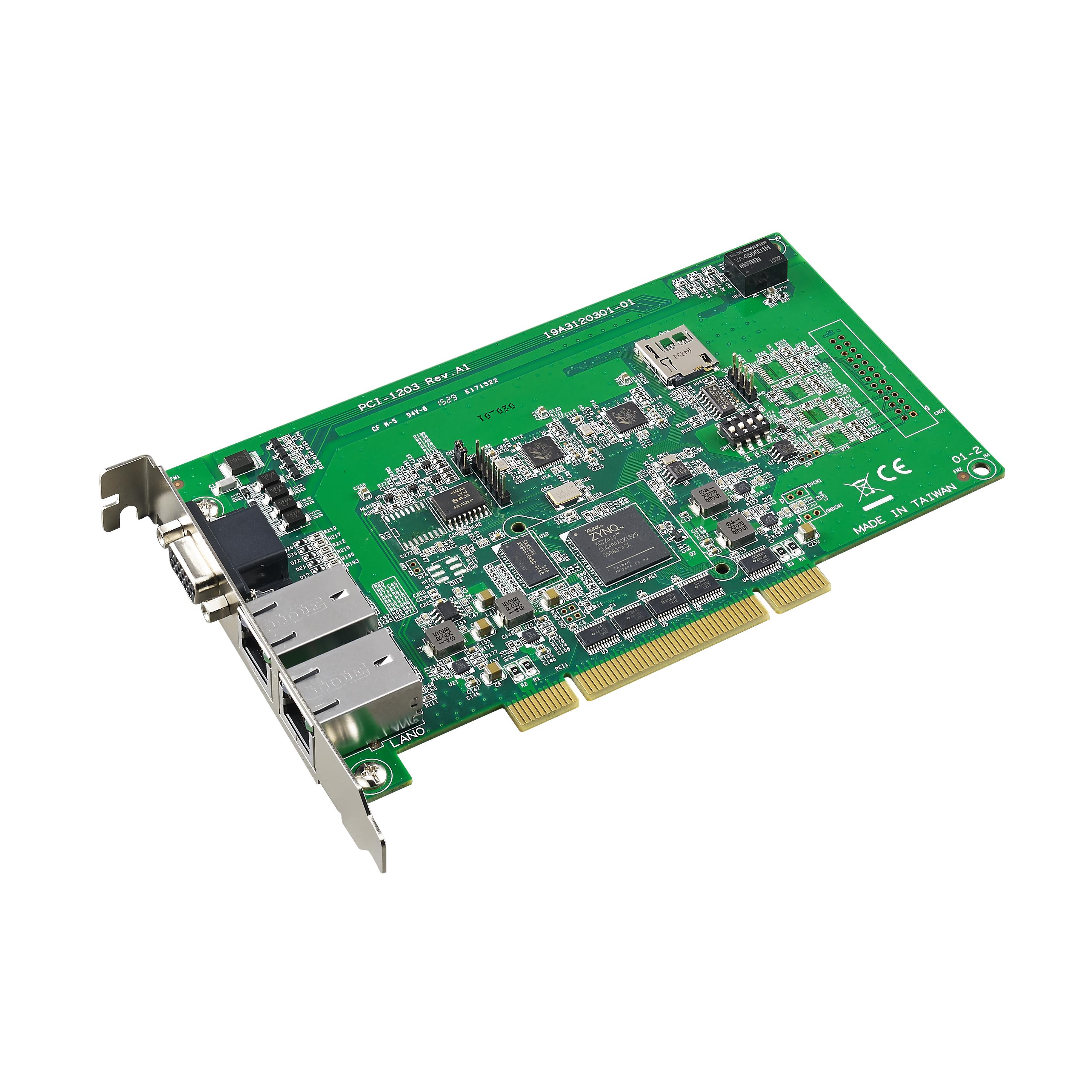

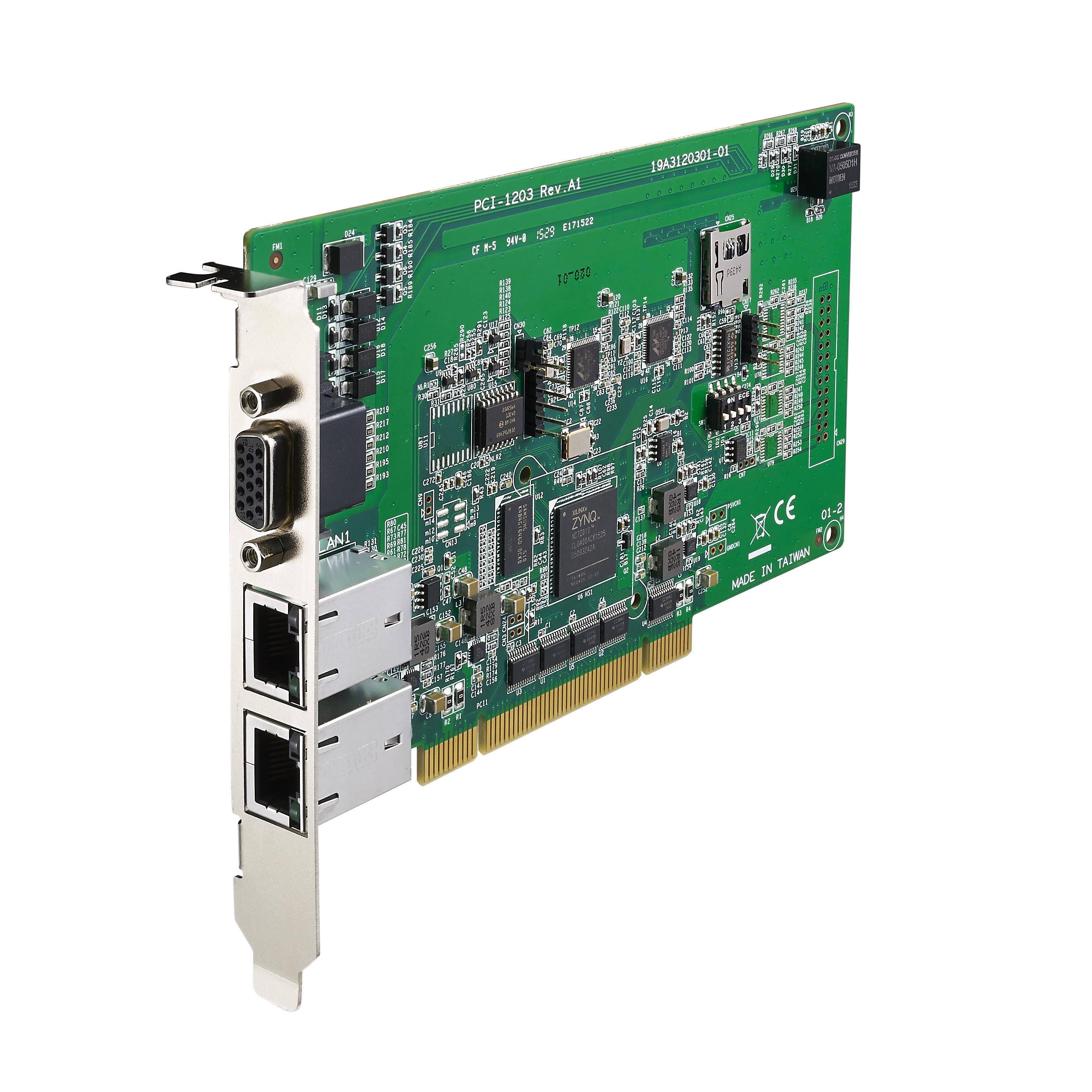

Advantech PCI-1203-06AE

Features

• Communication Cycle Time: 500 us
• Interface: EtherCAT
• Communication IO SubDevice: 1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO
• Communication Motion SubDevice: 06 Servo Drive Max.
• BUS Interface: 2 x RJ45
• Isolation Protection: 1,000 VDC
• Output Type: Sink
• Dimensions (L x H): 175 x 100 mm
• Interpolation: 2 to 8-axis linear, 3-axis circular, X-Y plane with Z thread helical interpolation
• 650MHz dual-core ARM processor
• 2 x EtherCAT ports for high-performance of Motion and I/O applications
• Supports common motion SDK for rapid application development
• Up to 32 axes support for motion control
• Supports a maximum of 6 motion groups and 8 axes per group
• Supports on board 8-CH isolated DI and 4-CH isolated DO
• Diagnostics for fast error handling can trace command and error message
