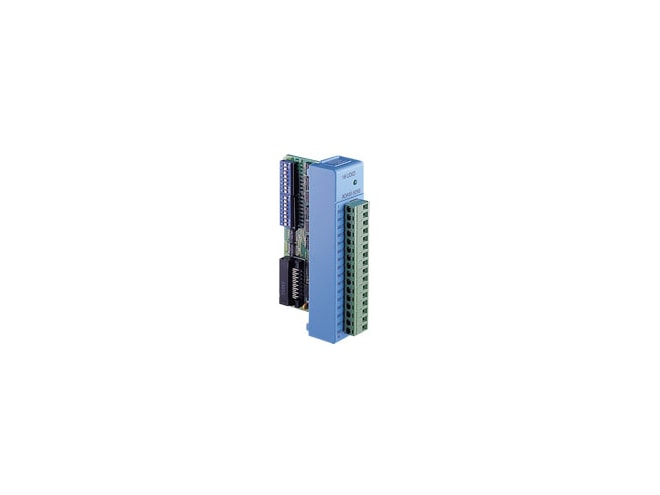

Advantech ADAM-5050-A2E

16-ch Universal Digital I/O Module.

$95.00
Part Number
  • ADAM-5050-A2E
Highlights...

Features

  • Input Voltage: Dry Contact
  • Logic level 0: close to GND
  • Logic level 1: open
  • Wet Contact
  • Logic level 0: 2 V max.
  • Logic level 1: 4 ~ 30 V
  • No. of Channels: Total 16-ch (DI/DO selectable)
  • Connectors: 1 x 16-pin plug-in screw terminal
  • Humidity (Operating): 5~95% RH (non-condensing)
  • Humidity (Storage): 5~95% RH (non-condensing)
  • Certification: CE, FCC class A
  • Digital input: Support Dry/Wet Contact
  • Digital output: Open Collector to 30 V, 450 mW max. load
  • I/O Type: bit-wise selectable by DIP switch
  • Power consumption: 0.35 W (typical); 1.2 W (max)
  • Channels: 16
The ADAM-5050 features sixteen digital input/output channels. Each channel can be independently configured to be an input or an output channel by the setting of its DIP switch. The digital outputs are open-collector transistor switches that can be controlled from the ADAM-5000. The switches can also be used to control solid-state relays, which in turn can control heaters, pumps and power equipment. The ADAM-5000 can use the module’s digital inputs to determine the state of limit or safety switches, or to receive remote digital signals.
