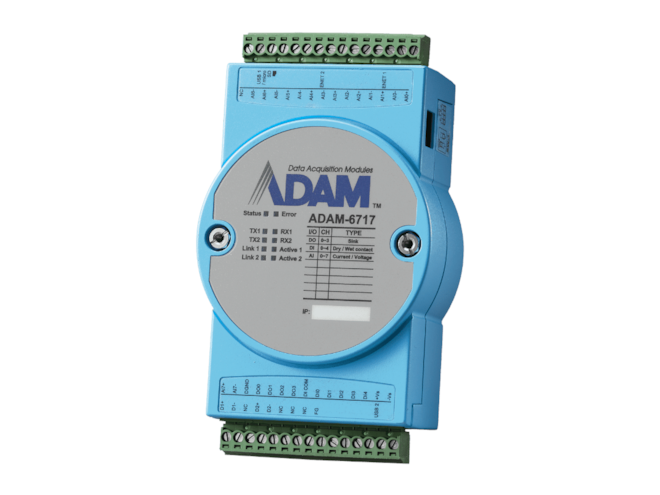

Advantech ESRP-PCS-ADAM6717

Features

• Input Range: ±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V
• lnput Type: V, mV, mA
• Resolution(Bits): 16-bit
• Sampling Rates(S/s): 100 S/s (sum)
• Isolation Voltage: 2,500 VDC
• Speed: 10/100 Mbps
• Connectors: 1 x 9-pin plug-in screw terminal, 2 x 15-pin plug-in screw terminal
• I/O: 2 x RS-485, 1 x Micro USB, 1 x USB 2.0
• OS Support: Linux
• Storage: 1 x micro SD Slot
• Input Voltage: Dry Contact
• Logic level 1: close to GND
• Logic level 0: open
• Wet Contact
• Logic level 1: 10~30 VDC
• Logic level 0: 0~3 VDC
• Output Type: Sink
• Output Voltage: 0~30 VDC
• Sink Current: 100 mA max./channel
• Input Voltage: 10~30 VDC
• Protocol: OPC-UA Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101
• Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server
• 8ch analog input (current or voltage)/ 5ch digital input/ 4ch digital output
• An intelligent gateway uploading data from edge to cloud
• Data publishing service by OPC-UA, Modbus, DNP3, BACnet, MQTT & LwM2M
• Data backup by storing data to database and FTP server
• Interfaces: RS-485x2, Ethernet port x 2, 1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
• WISE-EdgeLink software supports multiple PLC protocol drivers for data conversion
