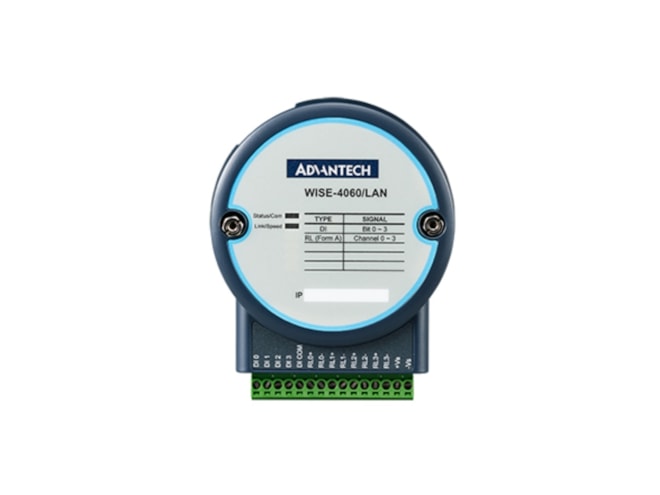

Advantech WISE-4060LAN-B

4-ch DI and 4-ch Relay IoT Ethernet I/O Module.

Call for pricing
Part Number
  • WISE-4060LAN-B
Highlights...

Features

  • Interface: Ethernet
  • Storage Humidity: 0~95% RH (non-condensing)
  • Connectors: 1 x RJ45, 1 x 15-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
  • Input Voltage: Dry Contact
  • Logic level 1: close to DI COM
  • Logic level 0: open
  • Wet Contact
  • Logic level 1: 10~30 VDC
  • Logic level 0: 0~3 VDC
  • Isolation Protection: 3000 Vrms
  • Input Voltage: 10~30 VDC
  • Contact Rating (Resistive): 3 A @ 30 VDC, 5 A @ 250 VAC
  • Relay Type: 1 x Form A
  • Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
  • Supports RESTful web API in JSON format
  • Supports local logging with RTC time stamp
  • Supports mobile device web configuration in HTML5
  • Supports 10~30 VDC power with reverse protection
The WISE-4000LAN series is a newly designed IoT Ethernet I/O module which supports new RESTful web API for IoT applications. A HTML5 web configure interface enables users to configure WISE modules without the limitation of a platform or operation system.
