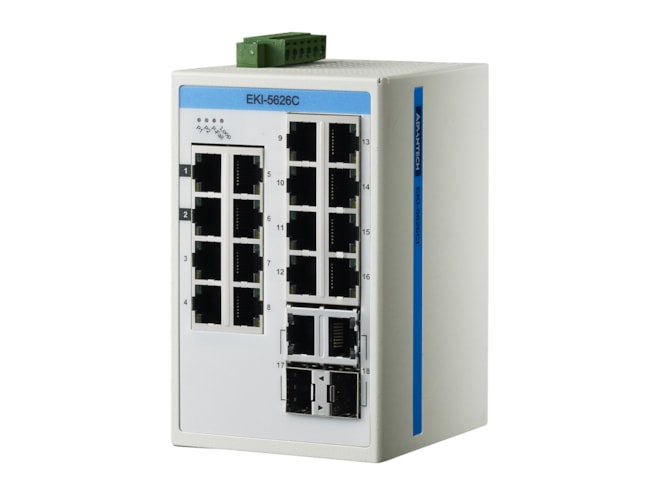

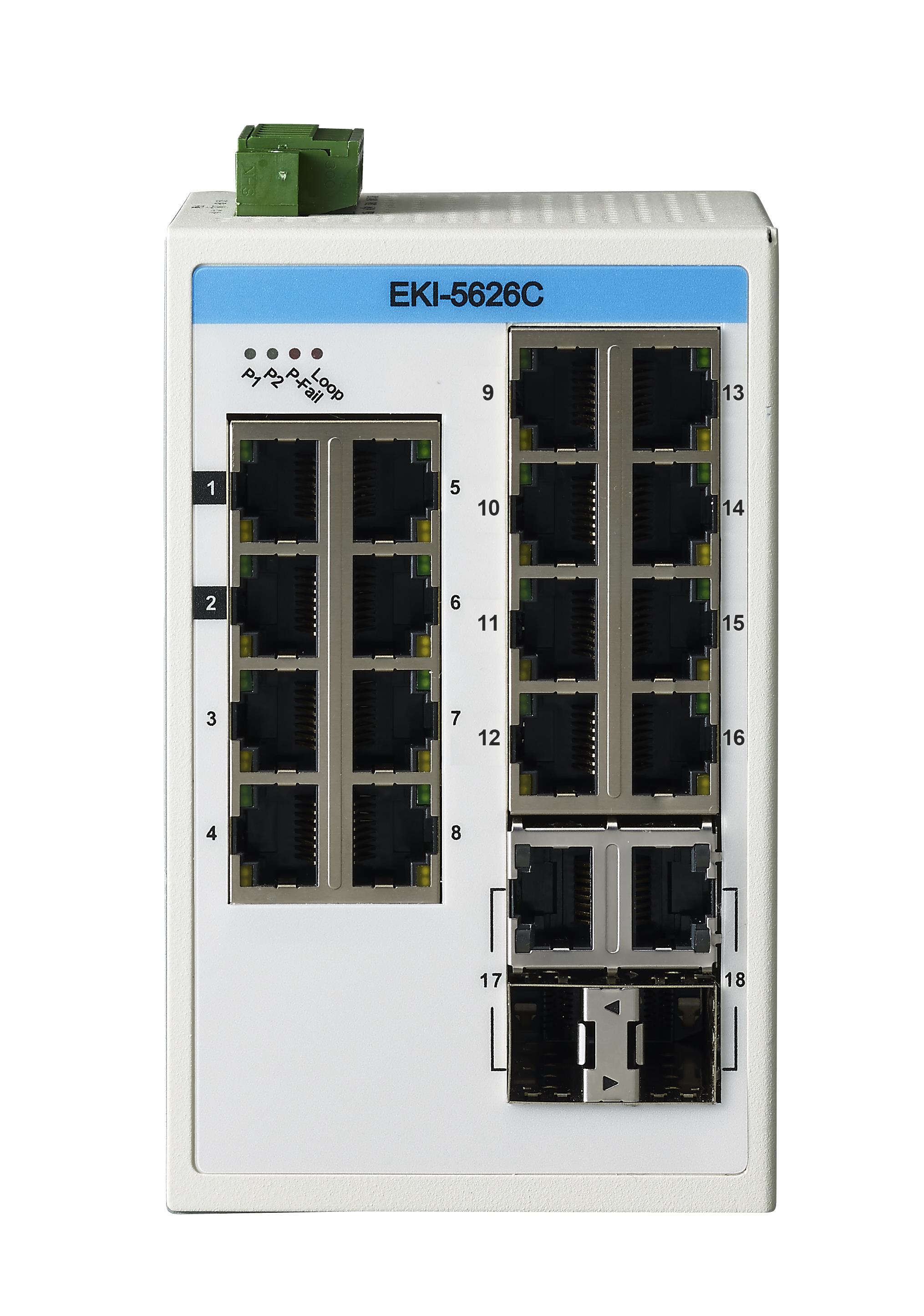

Advantech EKI-5626CI-AE

Features

• EMI: CE, FCC
• EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• Safety: UL508, Class 1 Division 2, ATEX
• Temperature (Max. Operating): 75°C (167°F)
• Fiber Port Number: 2 (combo)
• Fiber Port Interface: SFP
• Fiber Port Connector Type: SFP cage
• Fiber Transmission Distance: Up to 110 km
• Fiber Transmission Speed: 1000 Mbps
• RJ-45 Port Number: 16 + 2 (combo)
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• RJ-45 Transmission Speed: 10/100 Mbps
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Dimensions (W x H x D): 74 x 120 x 84 mm
• IP Rating: IP30
• Weight: 0.50 kg (1.1 lbs)
• Support PoE: No
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: 8.2W
• Power Input (DC): 24 ~ 48 VDC, (8.4VDC ~ 52.8VDC)
• Power Operating Current: 0.2A @ 24V
• Redundant Dual Inputs: Yes
• Jumbo Frame: 9,216 bytes
• MAC Table Size: 8K
• Packet Buffer Size: 128K bit
• Switch Fabric Speed: 7.2Gbps
• Warranty Period: 5 years
• Overload Current: Present
• Reverse Polarity: Present
• Communicates with SCADA software via Modbus/TCP
• Communicates with NMS (Networking management system) via SNMP
• Port-based QoS for deterministic data transmission
• EMS level 3 protection for extreme outdoor environments
• 12~48 V DC (8.4~52.8 V DC )wide-range power input
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Supports redundant 12~48 V DC power input and P-Fail relay
• Loop detection
