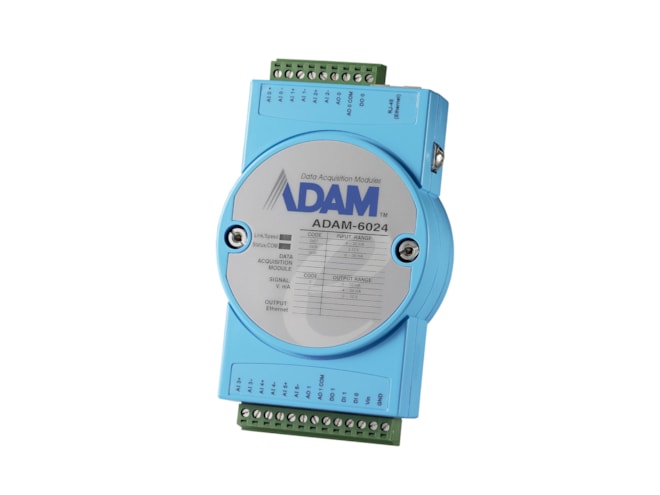

Advantech ADAM-6024-D

Features

• Input Range: ±10 V, 0~20 mA, 4~20 mA
• lnput Type: V, mA
• Resolution(Bits): 16-bit
• Sampling Rates(S/s): 10 S/s (sum)
• Output Ranges: 0~10 V, 0~20 mA, 4~20 mA
• Output Type: V, mA
• Resolution: 12-bit
• Interface: Ethernet
• Isolation Voltage: 2,000 VDC
• Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
• Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
• Input Voltage: Dry Contact
• Logic level 0: close to GND
• Logic level 1: open
• Wet Contact
• Logic level 1: 10~30 VDC
• Logic level 0: 0~3 VDC
• Output Type: Sink
• Output Voltage: 0~40 VDC
• Sink Current: 100 mA max./channel
• Input Voltage: 10~30 VDC
• 6ch analog input/2ch analog output/2ch digital input/2ch digital output
• Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
• GCL to perform basic logic control rules
• Peer-to-Peer function to map I/O status
• Watchdog timer to recover the system
• Isolation protection: 2000VDC
• Built-in web server
