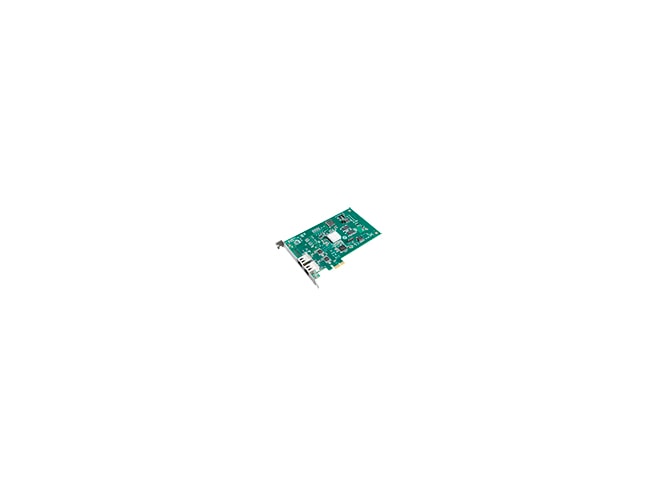

Advantech PCIE-1203L-64AE

Features

• Communication Cycle Time: 1000 us
• Interface: EtherCAT
• Communication IO SubDevice: 1024-ch DI and 1024-ch DO / 128-ch AI and 128-ch AO
• Communication Motion SubDevice: 64 Servo Drive Max.
• BUS Interface: 2 x RJ45
• Isolation Protection: 1,000 VDC
• Output Type: Sink
• Dimensions (L x H): 175 x 100 mm
• Interpolation: 2-axis linear
• 667MHz dual-core ARM processor
• 2 x EtherCAT ports for high-performance of Motion and I/O applications
• Supports common motion SDK for rapid application development
• Up to 64 axes support for motion control
• Supports point to point move
• Supports 2 axis Linear interpolation
• Supports programmable acceleration/deceleration rate
• Programmable interrupt
• RDY dedicated input channels & SVON/ERC dedicated output channels are switchable for general input and output purposes
• Diagnostics for fast error handling can trace command and error message
