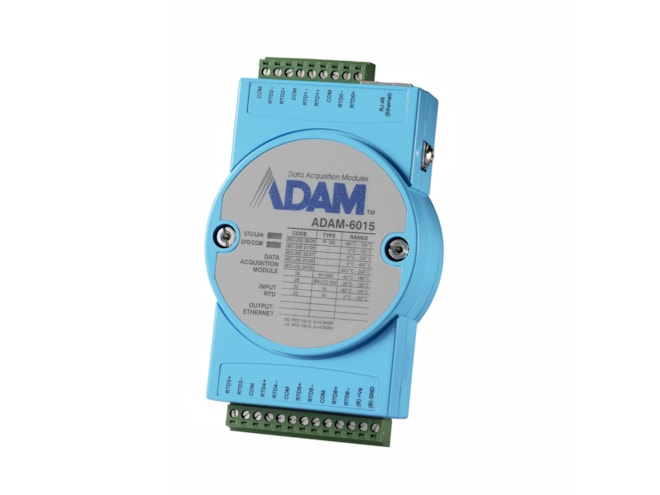

Advantech ADAM-6015-DE

7RTD IoT Modbus Ethernet Remote I/O.

$470.40
Part Number
  • ADAM-6015-DE
Highlights...

Features

  • Interface: Ethernet
  • Isolation Voltage: 2,000 VDC
  • Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
  • Input Voltage: 10~30 VDC
  • Input Type: Pt 100, Pt 1000, Balco 500, Ni 518
  • Sample Range: 1K S/s (sum)
  • 8ch RTD
  • Protocols: Modbus TCP, RESTful API, ASCII
  • GCL to perform basic logic control rules
  • Peer-to-Peer function to map I/O status
  • Wiring burn-out detect function
  • Isolation protection: 2000VDC
  • Built-in web server
The ADAM-6015 7-channel RTD input module accepts a wide range of RTD sensor types, including Pt100, Pt1000, Ni50, Ni508, and Balco 500 series. Multi input ranges are allowed in one module, creating a cost-effective solution. Most important of all, the ADAM-6015 supports open wiring diagnostic function which warns operators when the sensor wire has been broken. It specifically aims at building and factory temperature monitoring applications.
