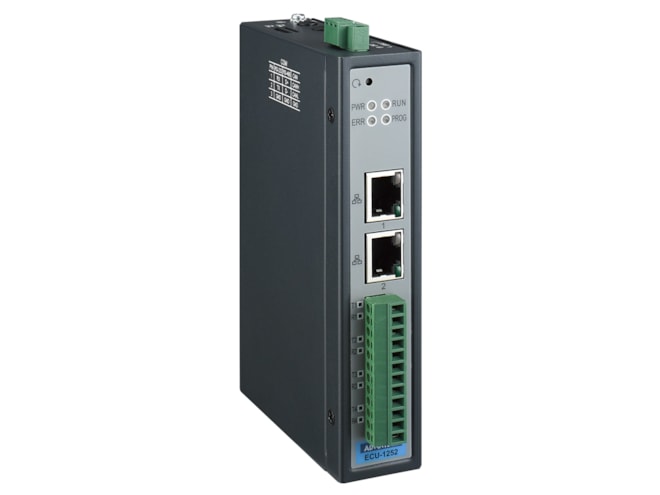

Advantech ECU-1252TL-R22AA

A9 600MHz, 2xCAN, 2xLAN, 2xCOM, 1xmPCIe IoT Gateway with EdgeLink.

$295.00
Part Number
  • ECU-1252TL-R22AA
Highlights...

Features

  • Input Voltage: 12~30 VDC
  • Humidity (Storage): 5~95% RH (non-condensing)
  • CPU: ARM® Cortexâ„¢ A9
  • Storage: 16 GB eMMC
  • LAN: 2 x 10/100/1000 Base-T Ethernet
  • Watchdog Timer: Programmable
  • Hardware Security: TPM 2.0
  • LED Indicators: Power, LAN (Active, Link), Serial (Tx/Rx), Programmable
  • Certification: CE, FCC
  • Power Consumption: 2.5 W @ 24 VDC
  • OS Support: Linux 4.9
  • Serial Ports: 2 x RS-232/485 (Terminal Block)
  • Vibration Protection: 1 Grms, random
  • SIM card slot: Nano SIM card
  • Interface: 1 x Full-size mini PCIe
  • Mounting: Wall, DIN-rail
  • Dimension (W x H x D): 140 x 30 x 96.5 mm
  • Form Factor: Passive Cooling and Front Accessible
  • I/O: 2 x CAN Bus
  • TI Cortex A9 600MHz CPU
  • DDR3L 2GB RAM
  • 16GB eMMC for system storage
  • 1 x Micro-SD Slot
  • 2 x CAN port
  • 2 x RS-232/485 isolated serial ports
  • 2 x 1000 Base-T Ethernet ports
  • 1 x Mini-PCIe for WIFI/Cellular/4G
  • Support web service for remotely on-line monitoring
ECU-1252 has an open platform design with Cortex A9 processor, up to 2 RS-232/485 isolated serial ports, 2 CAN ports, 2 1000 Base-T Ethernet ports and operating temp. of -40~70°C. Its Linux operating system and open EdgeLink SDK helps system integrators developing industrial applications.
