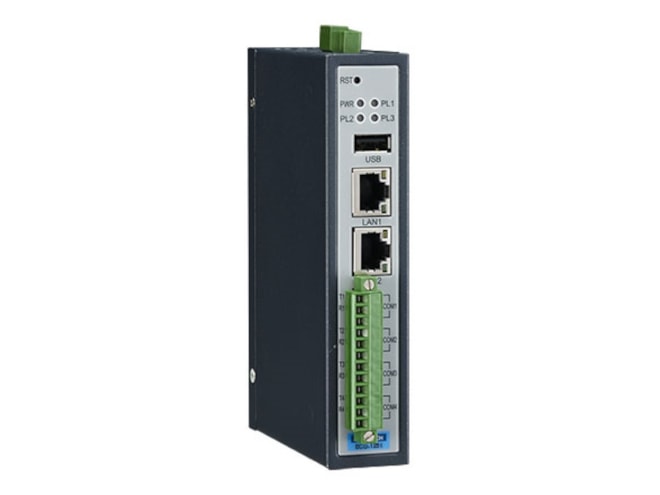

Advantech ECU-1251TL-R23AA

Features

• Relative Humidity: 5~95% RH (non-condensing)
• SIM card slot: Nano SIM card
• Grounding Protection: Chassis grounding
• Programming Language: Linux C
• Protocol: OPC-UA Client & Server, DNP3.0 Client & Server,
• IEC-60870-5-104 Master & Slave, IEC-60870-5-101
• Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
• Server
• Certification: CE, FCC class A
• CPU: ARM® Cortexâ„¢ A9
• Expansion: 1 x Full-size mPCIe slot
• LED Indicators: Power, LAN (Active, Link), Serial (Tx/Rx), Programmable
• Memory: 2 GB DDR3
• OS Support: Linux
• Power Input: 10~30 VDC
• Storage: 16 GB eMMC
• Watchdog Timer: 1~255 s
• LAN Ports: 2 x 10/100 Mbps
• Power Connector: 1 x 3-Pin Terminal Block
• Serial Ports: 4 x RS-232/485 (Terminal Block)
• USB Ports: 1 x USB 2.0
• Dimension (W x H x D): 140 x 30 x 96.5 mm
• Enclosure: SECC
• Form Factor: Passive Cooling and Front Accessible
• Mounting: Wall, DIN-rail
• Baud Rate (bps): 50 bps~115.2 kbps
• Data Signals: RS-232: TxD, RxD, GND
• RS-485: Data+, Data-
• Standard (Technology): WIFI, LTE
• Cortex A9 600MHz processor with 2G RAM
• 16GB eMMC system storage and 1 x Micro-SD Slot
• 4 x RS-232/485 isolated serial ports
• 2 x 10/100 Ethernet ports and 1x mPCIe for wireless communication expansion
• Support web service for remotely on-line monitoring
• Supports SD cards and OTA firmware updates
• EdgeLink IoT software for data acquisition and cloud communication
• Wide Operating temperature: -40 ~ 70°C
