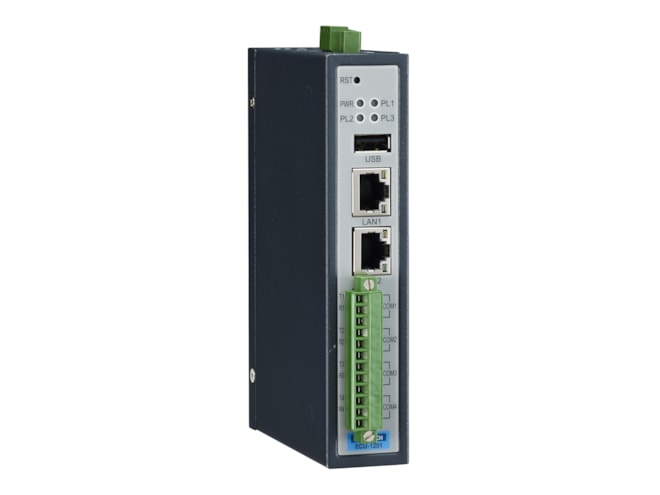

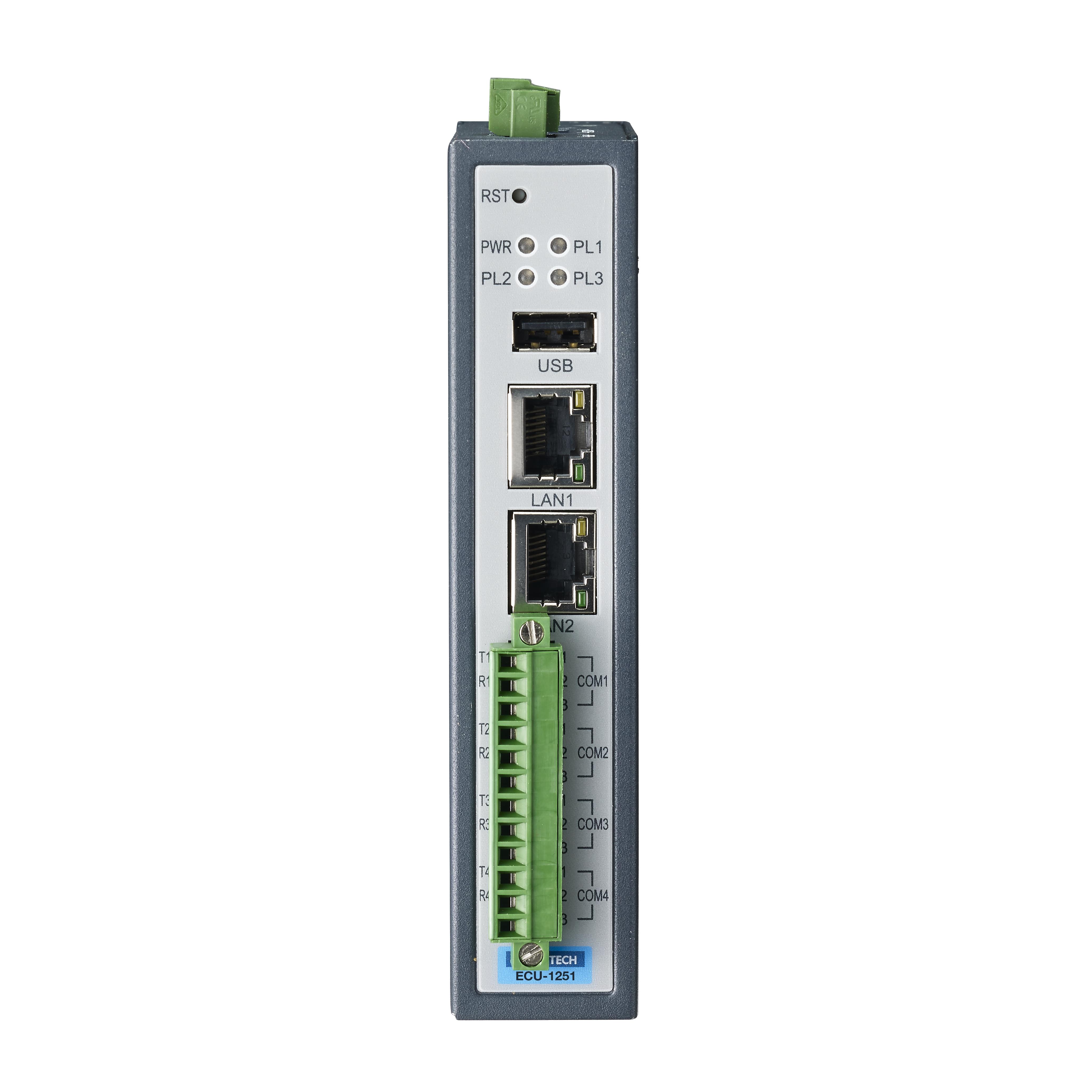

Advantech ECU-1251TL-R10AAE

A8 800MHz, 2xLAN, 4xCOM, 1xmPCIe IoT Gateway with EdgeLink.

$388.00
Part Number
  • ECU-1251TL-R10AAE
Highlights...

Features

  • Relative Humidity: 5~95% RH (non-condensing)
  • Speed: 10/100 Mbps
  • Interface: 1 x Full-size mini PCIe 2.0
  • SIM card slot: Nano SIM card
  • Grounding Protection: Chassis grounding
  • Programming Language: Linux C
  • Protocol: OPC-UA Client & Server, DNP3.0 Client & Server,
  • IEC-60870-5-104 Master & Slave, IEC-60870-5-101
  • Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
  • Server
  • Certification: CE, FCC class A
  • CPU: TI Cortex A8, 800MHz
  • Expansion: 1 x Full-size mPCIe slot
  • LED Indicators: PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
  • Memory: DDR3L 256MB
  • OS Support: Linux
  • Power Input: 10~30 VDC
  • Storage: 1 x 1GB Micro-SD card
  • Watchdog Timer: 15~255 s
  • Expansion: 1 x Full-size mPCIe Slot
  • LAN Ports: 2 x 10/100 Mbps
  • Power Connector: 1 x 3-Pin Terminal Block
  • Serial Ports: 4 x RS-232/485 (Terminal Block)
  • USB Ports: 1 x USB 2.0
  • Dimension (W x H x D): 140 x 30 x 96.5 mm
  • Enclosure: SECC
  • Form Factor: Passive Cooling and Front Accessible
  • Mounting: Wall, DIN-rail
  • Input Voltage: 10~30 VDC
  • Baud Rate (bps): 50 bps~115.2 kbps
  • Data Signals: RS-232: TxD, RxD, GND
  • RS-485: Data+, Data-
  • Standard (Technology): WIFI, LTE
  • TI Cortex A8, 800MHz
  • DDR3L 256MB RAM
  • 1 x Micro-SD Slot
  • 4 x RS-232/485 isolated serial ports
  • 2 x 10/100 Base-T Ethernet ports
  • 1 x Mini-PCIe for WIFI/3G/GPRS/4G
  • Support web service for remotely on-line monitoring
  • Support SD card & on-line firmware update
  • Support Modbus, IEC-60870-101/104 protocol
  • Support Data logger on SD card
  • RED Compliance
  • Operation Temperature -40~70°C
For solar power, electricity and factory related applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1251 RISC-based industrial communication gateway. ECU-1251 has an open platform design with Cortex A8 processor, up to four RS-232/485 isolated serial ports, two 10/100 Ethernet ports and operating temperature range of -40~70°C.WithLinux operating system and open TagLink SDK, which enable to system integrators to develop applications which precisely fit their need.
