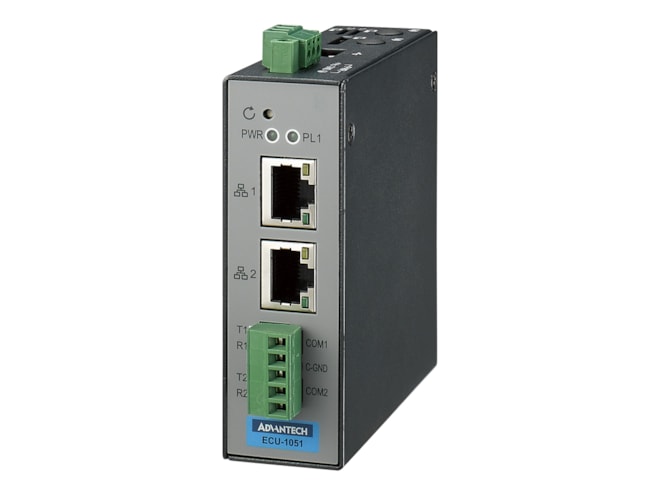

Advantech ECU-1051TL-R10AAE

A8 600MHz,2xLAN,2xCOM,Dual SIM slots w/EdgeLink.

Call for pricing
Part Number
  • ECU-1051TL-R10AAE
Highlights...

Features

  • Relative Humidity: 5~95% RH (non-condensing)
  • Speed: 10/100 Mbps
  • Interface: 1 x Full-size mini PCIe 2.0
  • SIM card slot: Nano SIM card
  • Grounding Protection: Chassis grounding
  • Programming Language: Linux C
  • Protocol: OPC-UA Client & Server, DNP3.0 Client & Server,
  • IEC-60870-5-104 Master & Slave, IEC-60870-5-101
  • Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
  • Server
  • Certification: CE, FCC class A
  • CPU: TI Cortex A8, 600MHz
  • Expansion: 1 x Full-size mPCIe slot
  • LED Indicators: PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program
  • Memory: DDR3L 256MB
  • OS Support: Linux
  • Power Input: 10~30 VDC
  • Storage: 1 x 512MB NAND Flash
  • Watchdog Timer: 15~255 s
  • Expansion: 1 x Full-size mPCIe Slot
  • LAN Ports: 2 x 10/100 Mbps
  • Power Connector: 1 x 3-Pin Terminal Block
  • Serial Ports: 2 x RS-232/485 (Terminal Block)
  • Dimension (W x H x D): 92 x 30 x 93 mm
  • Enclosure: SECC
  • Form Factor: Passive Cooling and Front Accessible
  • Mounting: Wall, DIN-rail
  • Input Voltage: 10~30 VDC
  • Baud Rate (bps): 50 bps~115.2 kbps
  • Data Signals: RS-232: TxD, RxD, GND
  • RS-485: Data+, Data-
  • Standard (Technology): WIFI, LTE
  • TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
  • Support web service for remotely on-line monitoring
  • Firmware update by SD card and online update
  • Data logger on SD card
  • Support dual SIM slots for communication redundant
  • Support MQTT Client for cloud communication
  • Wide Operating temperature: -40 ~ 70°C
  • No RED Certification
For facility monitoring, distributed solar power, smart factory sector, especially cloud based applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1051TL RISC-based industrial communication gateway. ECU-1051TL has an open platform design with Cortex A8 processor, two 10/100 Ethernet ports and operating temperature range of -40~70°C. With Linux operating system and open WISE-PaaS/EdgeLink SDK, which enable to system integrators to develop applications which precisely fit their need.
