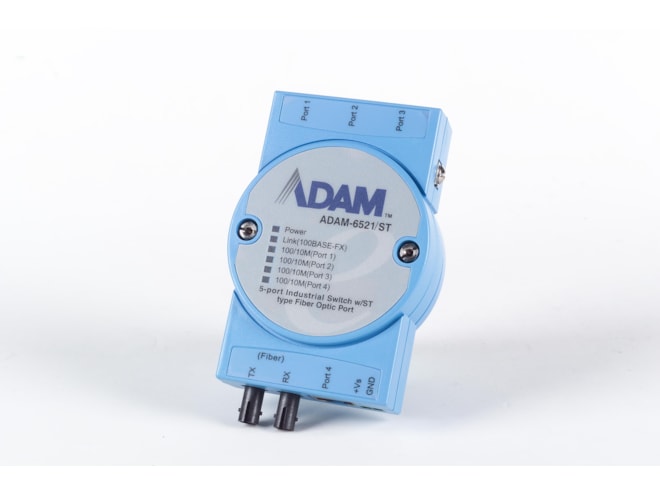

Advantech ADAM-6521/ST-AE

4+1 port ST Multi-mode Unmanaged Ethernet Switch, Flexible mounting.

$213.15
Part Number
  • ADAM-6521/ST-AE
Highlights...

Features

  • EMI: CE, FCC
  • Safety: UL/cUL 60950-1
  • Temperature (Max. Operating): 70°C (158°F)
  • Fiber Port Interface: Multi-Mode
  • Fiber Port Connector Type: ST type
  • Fiber Transmission Distance: 2 km
  • Fiber Transmission Speed: 100 Mbps
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Stack): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 70 x 112 x 27 mm
  • Enclosure (Plastic): Yes
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 2-pin removable screw terminal
  • Power Consumption: 3W
  • Power Input (DC): 1 x Unregulated 10 ~ 30 VDC
  • Warranty Period: 2 years
  • Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with ST connector
  • Supports full/half duplex flow control
  • Supports Integrated Loop-up engine
  • Supports MDI/MDI-X auto crossover
  • Provides broadcast storm protection
  • Supports +10 ~ 30 VDC voltage power input
  • Provides surge protection (EFT) 3,000 VDC for power line and 4,000 VDC Ethernet ESD protection
  • Provides flexible mounting: DIN-rail, panel, piggyback
  • Supports operating temperatures from -10 ~ 65° C
ADAM-6521/ST is an industrial-grade Ethernet switch with a fiber optic port that makes it possible to expand industrial networks fast and cost-effectively. ADAM-6521/ST has 1 fiber port and 4-RJ-45 ports. With fiber optics, you can prevent noise interfering with your system and implement transmission distances up to 15 km. ADAM-6521/ST supports a wide voltage range of 10 ~ 30 VDC over the terminal block, and 3,000 VDC surge protection (EFT) to protect it from being damaged by over-voltage. A wide operating temperature range from -10 to 65° C (14 ~ 149° F), makes it functional in harsh operating environments. Six inclusive LED indicators make troubleshooting easier. Each port has a pair of LEDs that indicate link status and transmission speed. This function conveniently informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnostics.
