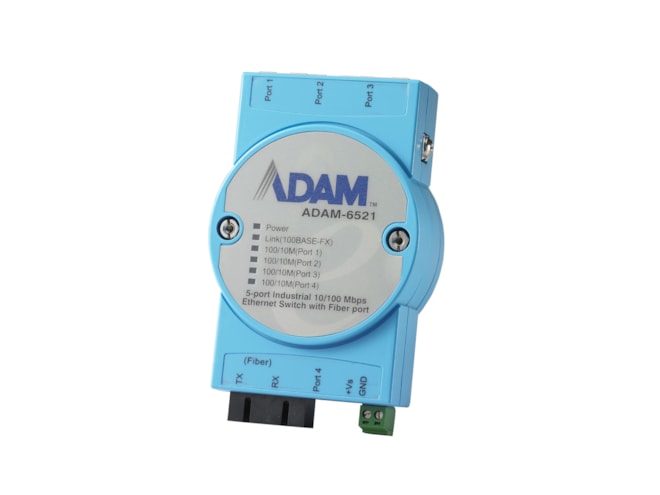

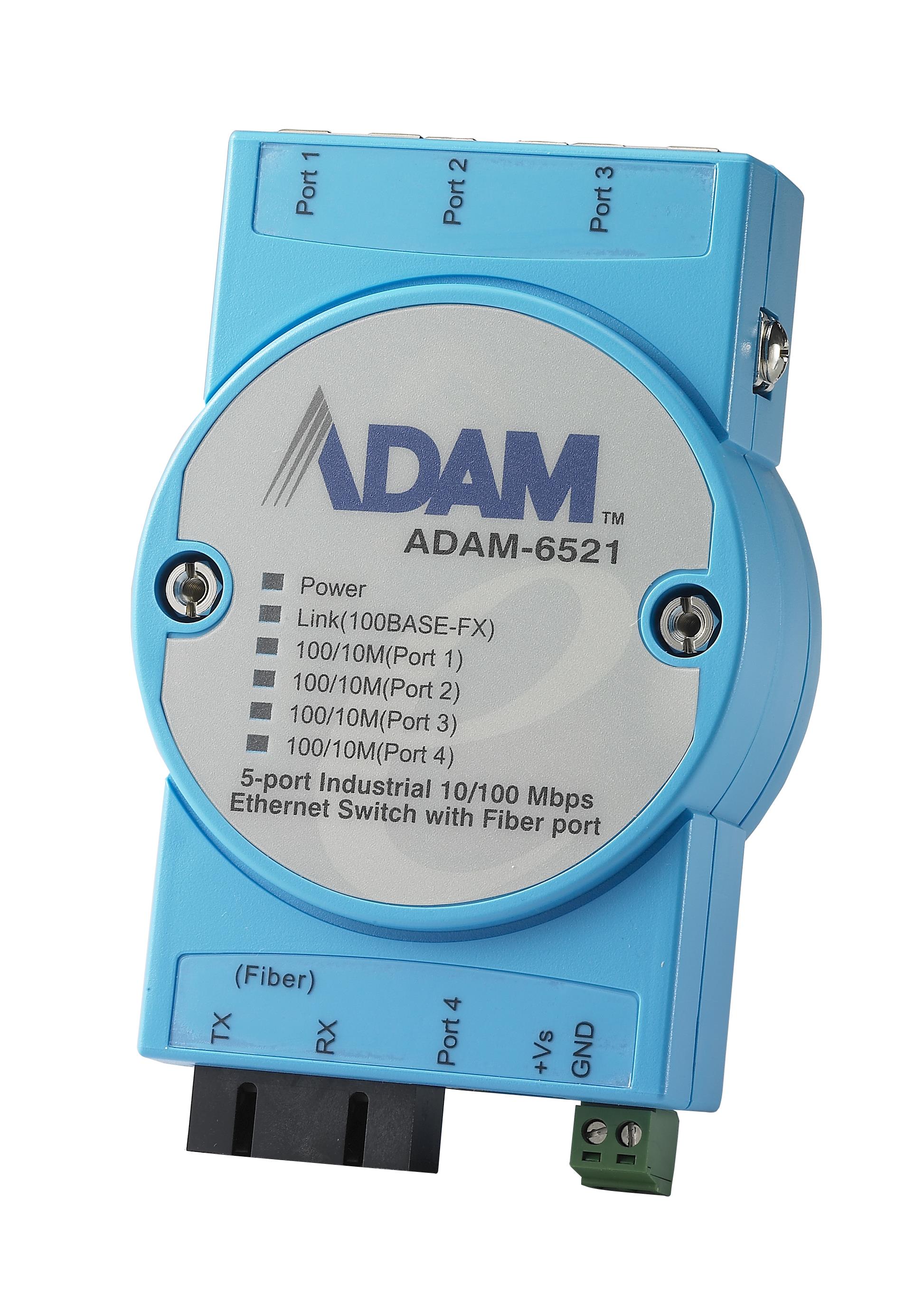

Advantech ADAM-6521-BE

4+1 port SC Multi-mode Unmanaged Ethernet Switch, Flexible mounting.

$213.15
Part Number
  • ADAM-6521-BE
Highlights...

Features

  • EMI: CE, FCC
  • Safety: UL/cUL 60950-1
  • Temperature (Max. Operating): 70°C (158°F)
  • Fiber Port Interface: Multi-Mode
  • Fiber Port Connector Type: SC Type
  • Fiber Transmission Distance: 2 km
  • Fiber Transmission Speed: 100 Mbps
  • RJ-45 Port Connector Type: RJ-45
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Transmission Speed: 10/100 Mbps
  • Mounting (DIN-rail): Yes
  • Mounting (Stack): Yes
  • Mounting (Wall): Yes
  • Dimensions (W x H x D): 70 x 112 x 27 mm
  • Enclosure (Plastic): Yes
  • IP Rating: IP30
  • Support PoE: No
  • Power Connector Type: 2-pin removable screw terminal
  • Power Consumption: 3W
  • Power Input (DC): 1 x Unregulated 10 ~ 30 VDC
  • Warranty Period: 2 years
  • Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
  • Supports full/half duplex flow control
  • Supports Integrated Loop-up engine
  • Supports MDI/MDI-X auto crossover
  • Provides broadcast storm protection
  • Supports +10 ~ 30 VDC voltage power input
  • Provides surge (EFT) protection 3,000 VDC for power line
  • Supports 4,000 VDC Ethernet ESD protection
  • Supports operating temperatures from -10 ~ 65° C
The ADAM-6521 is an industrial-grade Ethernet hub for infrastructure networking solution in industrial Automation environment. It allows users to cost-effectively expand their industrial network with ease. The ADAM-6521 consists of one fiber optic and four RJ-45 ports. With fiber optic, you can prevent noise interference from the system and transmission distance up to 2 km. The design is focused on industrial-grade reliability and stability. Thus, the ADAM-6521 is especially suited for industrial environments with Ethernet networking needs, e.g. semi-conductor factories, inventory control environments, assembly lines, production and more.
