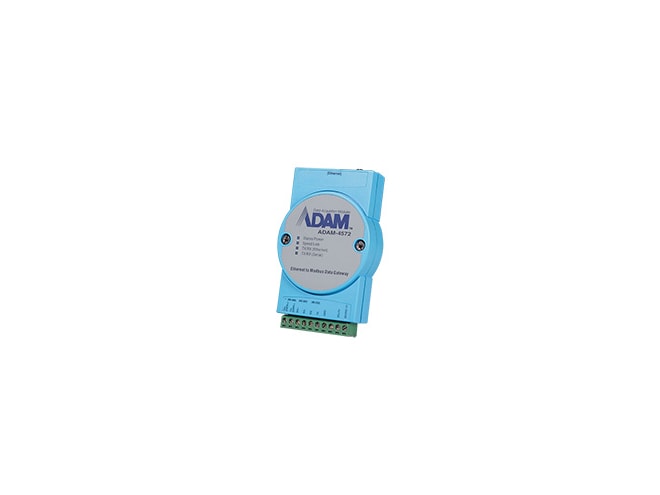

Advantech ADAM-4572-CE

Features

• EMC: CE, FCC
• EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
• EMS: EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2), EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55024
• Freefall: NA
• Operating Humidity: 5~95% RH
• Ethernet Standard: IEEE 802.3 , 802.3u
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Speed: 10/100 Mbps
• Dimensions (W x H x D): 70 x 112 x 25 mm
• Enclosure (Plastic): Yes
• IP Rating: IP30
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Weight: 125 g
• Power Consumption: 2.5W
• Power Operating Current: 0.3A @ 12 V
• Power Input (DC): 10 ~ 30 VDC
• RS-232: Yes
• RS-422: Yes
• RS-485: Yes
• Serial Port Connector Type: Terminal block
• Baud Rate: 50 ~ 921.6 Kbps
• Configuration: Windows utility, Web Browser
• Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
• Operation Mode: Modbus RTU Client/Server, Modbus ASCII Client/Server
• Modbus TCP: Yes
• Modbus RTU: Yes
• Modbus ASCII: Yes
• Ethernet: Yes
• Warranty Period: 5 years
• Supports Modbus/ASCII, RTU Protocol to control devices
• Allows up to 8 clients to access field data simultaneously
• Up to 31 Independent serial ports if configured to RS-485 serial mode
• Surge protection for RS-485 and power line
• Provides auto-searching device ID Windows utility
• Automatic RS-485 data flow control
• Easy mounting on DIN-rail or panel
• Supports popular HMI software with Modbus/TCP driver or OPC server
• Supports 10/100 Mbps communication speeds
