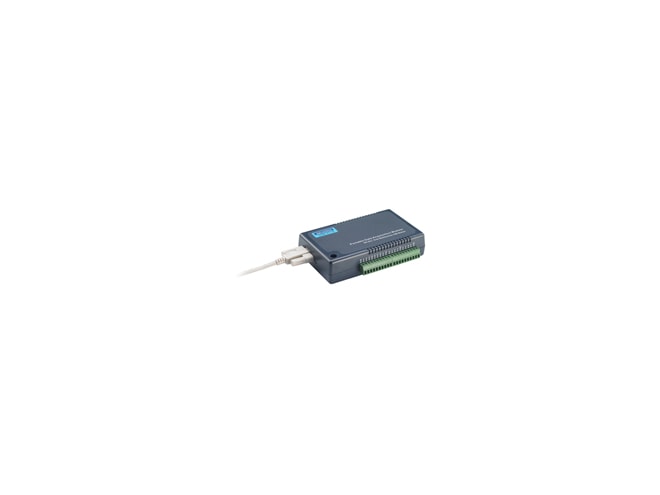

Advantech USB-4716-BE

200KS/s, 16-bit USB Muntifunction Module.

$429.00
Part Number
  • USB-4716-BE
Highlights...

Features

  • Input Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, 0~10 V, 0~5 V, 0~2.5 V, 0~1.25 V
  • Resolution(Bits): 16-bit
  • Sampling Rates(S/s): 200 KS/s (sum)
  • Resolution: 16-bit
  • Update Rate(S/s): Static update
  • Counting Range: 32-bit
  • Channels: 8 (TTL)
  • Channels: 8 (TTL)
  • Programming Language: C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
  • Supports USB 3.0 SuperSpeed
  • Bus-powered
  • 16 analog input channels
  • 16-bit resolution AI
  • Sampling rate up to 200 kS/s
  • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
  • Detachable screw terminal on modules
  • Suitable for DIN-rail mounting
  • One lockable USB cable for secure connection included
  • Portable
The USB-4700 series consists of true plug & play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data. It’s easy and efficient. USB-4716 offers 16 single-ended/ 8 differential inputs with 16-bit resolution, up to 200 kS/s throughput, 16 digital I/O lines and 1 user counter, add two 16-bit analog outputs. The high performance makes USB-4716 your best choice for test & measurement applications in the production line or in the lab. Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4716 is the perfect way to add measurement and control capability to any USB capable computer. The USB-4700 series is fully plug & play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.
