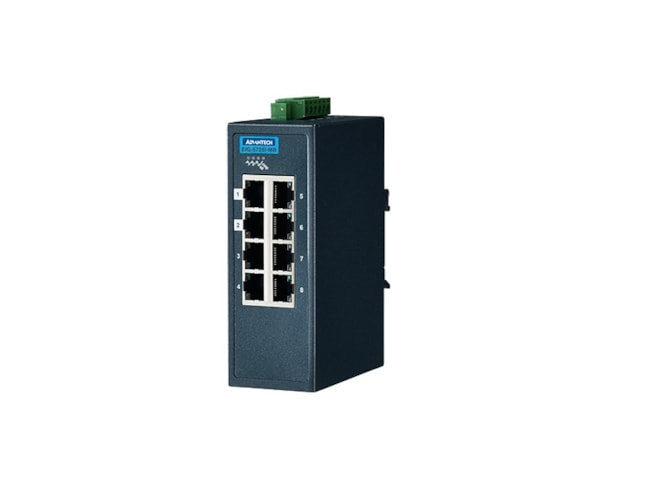

Advantech EKI-5728I-MB-AE

Features

• EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
• EMI: CE, FCC Class A
• Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az
• Freefall: IEC 60068-2-32
• Safety: UL 508
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Relative Humidity: 10~95%
• Temperature (Max. Operating): 75°C (167°F)
• RJ-45 Port Connector Type: RJ-45
• RJ-45 Transmission Distance: 100 m
• RJ-45 Transmission Speed: 10/100/1000 Mbps
• Modbus TCP: Yes
• Ethernet: Yes
• Dimensions (W x H x D): 43 x 120 x 84 mm
• IP Rating: IP30
• Mounting (DIN-rail): Yes
• Mounting (Wall): Yes
• Weight: 0.50 kg (1.1 lbs)
• Method: Telcordia(Relax), GB
• Time: 4,176,861 hours
• Support PoE: No
• Power Connector Type: 6-pin removable screw terminal (power & relay)
• Power Consumption: 5.2W (system)
• Power Input (DC): 12 ~ 48 VDC
• Redundant Dual Inputs: Yes
• Reverse Polarity: Present
• Jumbo Frame: 9,216 bytes
• MAC Table Size: 8K
• Packet Buffer Size: 4.1M bit
• Switch Fabric Speed: 16Gbps
• Warranty Period: 5 years
• Entry-level managed switch
• Provides wide operating voltage 8.4~52.8 VDC
• C1D2 and ATEX certified for horizontal area
• IXM function enables fast deployment
• Modbus/TCP enabled by default
• Supports X-Ring for ultra high-speed recovery time less than 20m
