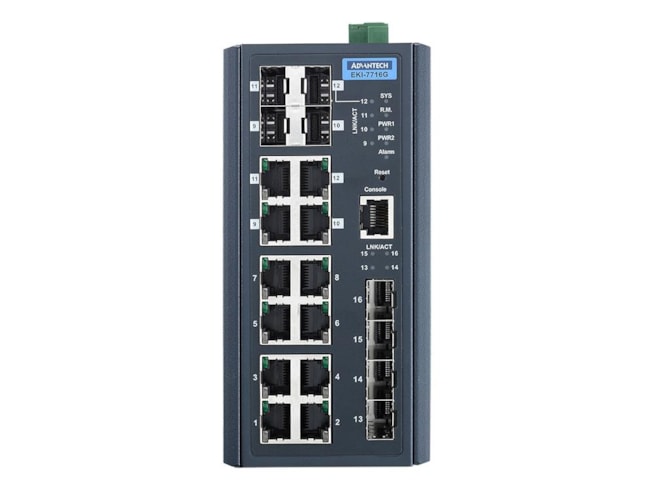

Advantech EKI-7716G-4F4CI-AE

16port Gigabit Managed Ethernet Switch with 8port SFP & combo port,-40~75℃.

$1,929.40
Part Number
  • EKI-7716G-4F4CI-AE
Highlights...

Features

  • Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32
  • Shock: IEC 60068-2-27
  • EMI: CE, FCC Class A
  • EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN 50121-4, NEMA TS2
  • Temperature (Max. Operating): 75°C (167°F)
  • Relative Humidity: 10~95%
  • Fiber Transmission Distance: Up to 110 km
  • Fiber Port Connector Type: SFP cage
  • Fiber Port Interface: SFP
  • RJ-45 Transmission Distance: 100 m
  • RJ-45 Port Connector Type: 8 x RJ-45 + 4 x SFP + 4 x RJ-45/SFP
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • Mounting (Wall): Yes
  • Mounting (DIN-rail): Yes
  • Weight: 1.2 kg
  • IP Rating: IP30
  • Dimensions (W x H x D): 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
  • Method: Telcordia, GB
  • Power Operating Current: 0.25A @ 48VDC (system)
  • Power Connector Type: 6-pin removable screw terminal (power & relay)
  • Power Input (DC): 12 ~ 48 VDC
  • Power Consumption: 12.1W (system)
  • Reverse Polarity: Present
  • Jumbo Frame: 9,216 bytes
  • Switch Fabric Speed: 32Gbps
  • Packet Buffer Size: 4.1M bit
  • MAC Table Size: 8K
  • Warranty Period: 5 years
  • 12 ~ 48 VDC power input and 1 relay output
  • EN50121-4 approval for railway trackside deployment
  • NEMA TS2 for traffic control
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • IXM function enables fast deployment
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP and MSTP (802.1w/1D/1s)
  • SFP socket for easy and flexible fiber expansion
EKI-7716G-4F4C/4F4CI supports 8 Gigabit Ethernet, 4 Gigabit SFP (mini-GBIC), and 4 Gigabit combo ports. It provides abundant ports to connect many devices. EKI-7716G-4F4C/4F4CI is embedded with Advantech IXM function for fast deployment that can dramatically save engineering time and cost. EKI-7716G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7716G series is equipped with X-Ring Pro redundancy for ultra high-speed recovery times of less than 20 ms. The switch also features -40 to 75 °C wide temperature operation and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. EKI-7716G-4F4C/4F4CI also passes the EN50121-4 European railway standard for emissions and EMI immunity for railway platforms and trackside deployment.
