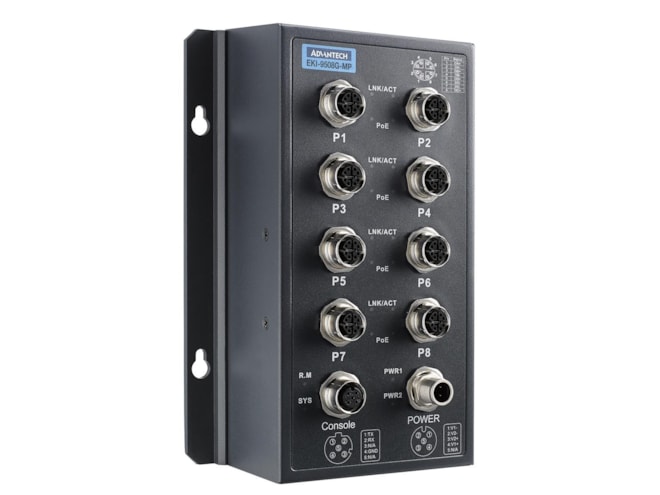

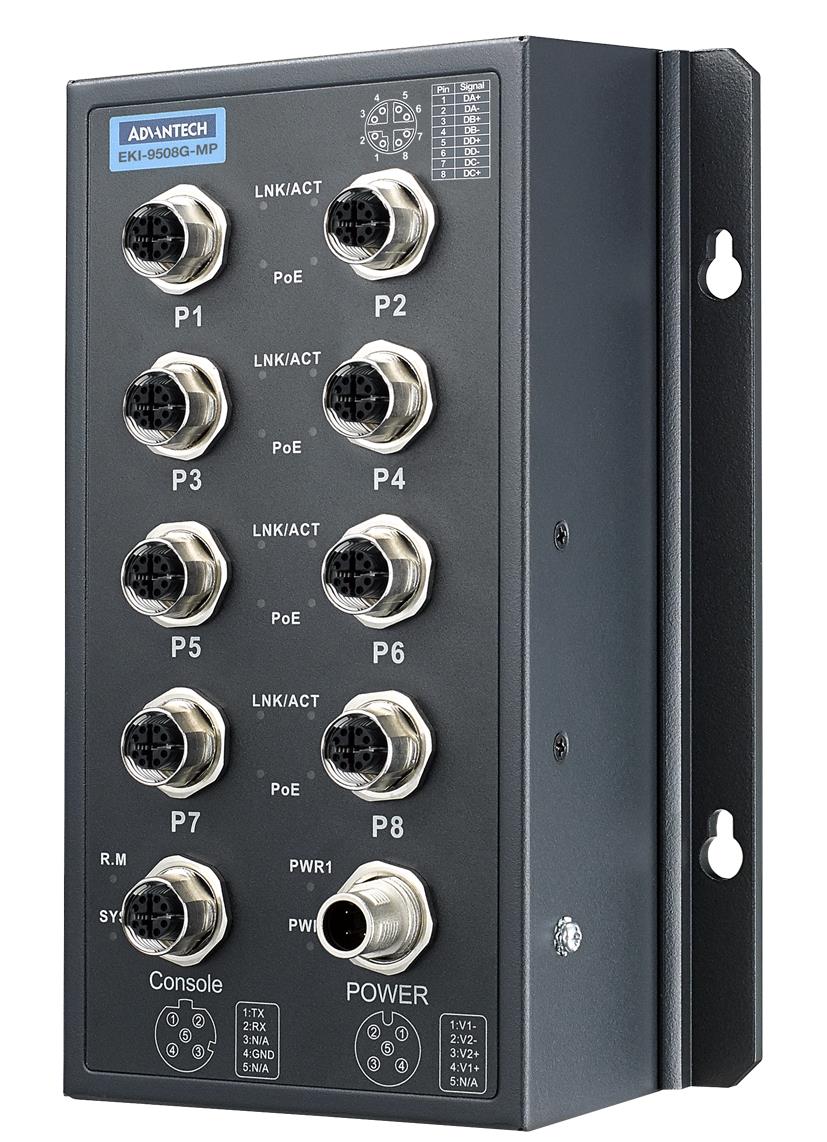

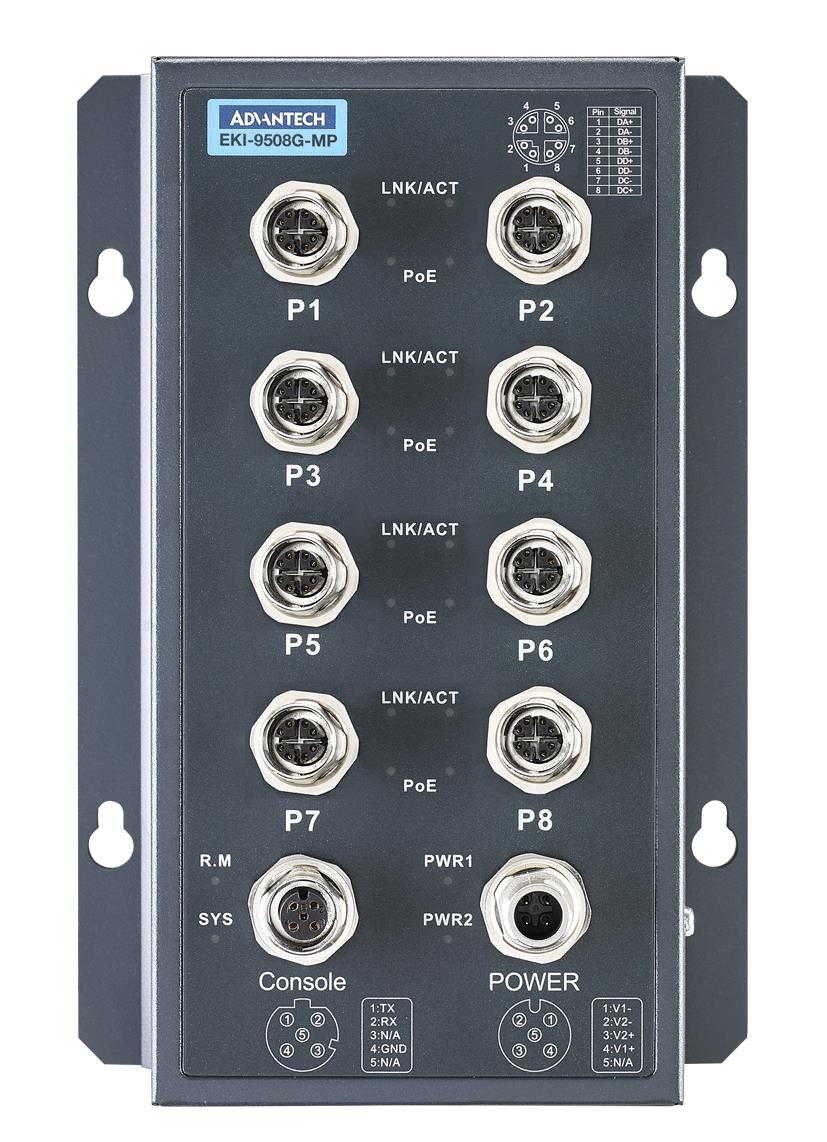

Advantech EKI-9508G-MPL-AE

EN50155 Managed PoE Ethernet Switch with 8GE, 24-48 VDC.

$1,682.81
Part Number
  • EKI-9508G-MPL-AE
Highlights...

Features

  • EMC: CE, EN55032/24, EMC DIRECTIVE 2014/30/EU
  • EMI: CISPR 32, FCC Part 15 Subpart B Class A
  • EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3)
  • Vertical Market: EN50155, EN50121-3-2, EN61000-6-2
  • Freefall: IEC 60068-2-31
  • Shock: IEC 61373
  • Vibration: IEC 61373
  • Operating Humidity: 5~95%
  • Relative Humidity: 5~95%
  • Ethernet Standard: IEEE 802.3 , 802.3u , 802.3ab , 802.3z, 802.3x
  • RJ-45 Port Connector Type: M12 (8 pin X-Coded) for 10/100/1000Mbps
  • RJ-45 Transmission Speed: 10/100/1000 Mbps
  • RJ-45 Transmission Distance: NA
  • Fiber Port Connector Type: NA
  • Fiber Port Interface: NA
  • Dimensions (W x H x D): 122.5 x 179.4 x 71.8 mm
  • Enclosure (Metal): Metal shell
  • IP Rating: IP40
  • Mounting (DIN-rail): By additional bracket
  • Mounting (Wall): Yes
  • Weight: 1.3 kg
  • Method: Telcordia, GM
  • PoE Budget: 60W
  • PoE Port Number: 8 (M12 D-Coded)
  • Power Connector Type: M12 (4 pin A-coded)
  • Power Consumption: 5W
  • Power Input (DC): 24/ 28/ 36/ 48 VDC
  • Power Operating Current: 0.09A @ 110VDC (system)
  • Power Operating Voltage: 16.8 ~ 60 VDC
  • Reverse Polarity: Present
  • Redundant Dual Inputs: Yes
  • Overload Current: Present
  • Jumbo Frame: 9,216 bytes
  • MAC Table Size: 8K
  • Packet Buffer Size: 1.5M bit
  • Switch Fabric Speed: 1.6Gbps
  • Warranty Period: 5 years
  • 8 port M12 X-coded 10/100/1000Mbps PoE ports
  • Complies with EN50155 & EN50121-3-2
  • Operating temperature range -40 ~ 70°C
  • Operating Voltage: 16.8~60 VDC
  • X-Ring Pro supports rapid and predictable convergence
  • 8-port PoE support IEEE802.3 at/af
  • M12 connector with rugged housing
The EKI-9500 series switch is designed for railway application with rugged and high EMC performance, being suitable for networking solution for rolling stock and wayside applications. The EKI-9500 series provides M12 connectors for Ethernet/ console/ relay/ power input connections to ensure tight & robust connectivity, and thus to guarantee reliable operation against environmental disturbances such as vibration and shock on train. The EKI-9508G-MPH & EKI-9508G-MPL are managed PoE Ethernet switches that provide 8 x Gigabit Ethernet M12 X-code port interface with IEEE802.3af/at PoE (Power Over Ethernet) function. The PoE ports can provide up to 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). The EKI-9508G-MPH/ MPL features “slim” designs which can be easy deployed with its slender size and make the network deployment easier in crowded carriage/ cabinet.
