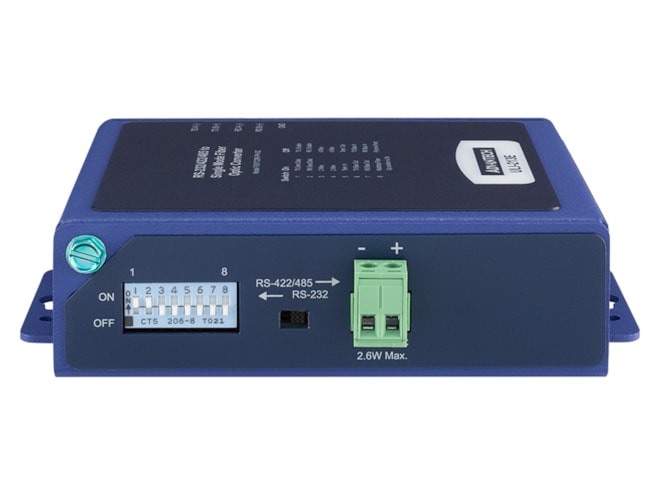

Advantech BB-FOSTCDRI-PH-SC

ULI-213E - Serial to Fiber Converter, RS-232/422/485 TB to SM Fiber SC, Ind. Panel, C1D2.

$586.00
Part Number
  • BB-FOSTCDRI-PH-SC
Highlights...

Features

  • Technology: Serial
  • Serial Standard: RS-232 / RS-422 / RS-485
  • Mounting: Panel
  • Serial Port Connector Type: Terminal block
  • Power: 10-48VDC
  • Maximum Serial Transmission Speed: 115.2 Kbps
  • Optical Mode: Single-mode
  • Serial Type: RS-232/422/485
  • Max. Distance: 15 km
  • Serial Connector: Terminal Block
  • Optical Connector: SC
  • Fiber Type: Single-mode
  • Optical Wavelength: 1310 nm
  • Isolation: 2,000 VDC
  • Surge Protection: 600W
  • Safety: UL C1/D2 (Class I, Division 2)
  • Substation: IEC-61850-3
  • Power Input (DC): 10 ~ 48 VDC
  • Mounting: Panel
  • Enclosure (Metal): Metal
  • Converts serial data signals to multi- or single-mode fiber, SC connector
  • 2 KV, 3-way isolation (input, output, power circuits)
  • Data rate: 9.6 to 115.2 kbps (bit-wise enable)
  • IP30 metal panel mount case (DIN rail adaptable)
  • FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D2
  • 10-48 VDC power source required (not included, sold separately)
  • Note: 2 units required to extend data via fiber optic connection (see datasheet)
Model FOSCTDRI-PH-SC is a premium heavy industrial serial-to-fiber optic converter. Designed for rugged industrial environments, it has been put through some of the most exacting compliance testing in the industry. Meeting IEC 61850-3 and IEEE 1613 requirements, it is suitable for installation in electrical substations. These specifications are more stringent than NEMA TS1/TS2 requirements for transportation applications. Powerful isolation protects equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third level of protection. An external 10-48 VDC power source is required (not included, sold separately). Packaged in a rugged IP30 metal case, this converter converts serial signals to single-mode fiber optic. Bit-wise enabled circuitry automatically detects the data rate without setting a DIP switch. In addition to direct point-to-point connectivity, operation in multi-drop mode is possible. This enables serial devices to communicate with up to 31 others in a fiber ring. Supporting mixed standards, you can replace other converters and add the EMI / RFI protection inherent to fiber optic communications. Note: These converters use a proprietary modulated fiber optic signal. Two units are required to extend the data via the fiber optic connection. Any FOSTCDRi-PH-x converter can (only-) connect to another FOSTCDRi-PH-x converter model at the other end of the fiber optic cable.
