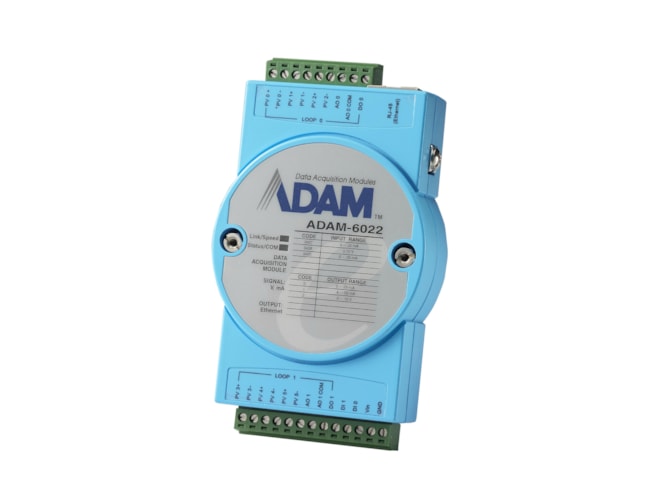

Advantech ADAM-6022-A1E

6AI/2AO/2DI/2DO Ethernet PID Module.

$540.00
Part Number
  • ADAM-6022-A1E
Highlights...

Features

  • Input Range: ±10 V, 0~20 mA, 4~20 mA
  • lnput Type: V, mA
  • Resolution(Bits): 16-bit
  • Sampling Rates(S/s): 10 S/s (sum)
  • Output Ranges: 0~10 V, 0~20 mA, 4~20 mA
  • Output Type: V, mA
  • Resolution: 12-bit
  • Interface: Ethernet
  • Isolation Voltage: 2,000 VDC
  • Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
  • Input Voltage: Dry Contact
  • Logic level 0: close to GND
  • Logic level 1: open
  • Wet Contact
  • Logic level 1: 10~30 VDC
  • Logic level 0: 0~3 VDC
  • Output Type: Sink
  • Output Voltage: 0~30 VDC
  • Sink Current: 100 mA max./channel
  • Input Voltage: 10~30 VDC
  • 2 loop PID control algorithms built in one package
  • 3 analog input/1 analog output/1 digital input/1digital alarm output for 1 PID loop
  • Support multiple analog I/O ranges: 0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA
  • Support heating/cooling (direct/reverse) action mode
  • Support loop open/close (PID disable/enable) and analog output manual control modes
  • Watchdog timer to recover the system
  • Built-in web server
Advantech’s ADAM-6022 is an Ethernet-enabled dual-loop PID controller for general purposed PID control applications. A user-friendly utility software is included for users to set PID parameters (Pv, Mv, & Sv). Through the integrated web page, users can monitor and change the control set point through the Internet via web browser. The ADAM-6022 also supports MODBUS/TCP protocol. HMI software can easily access this module to monitor the I/O data and change the control parameters.
