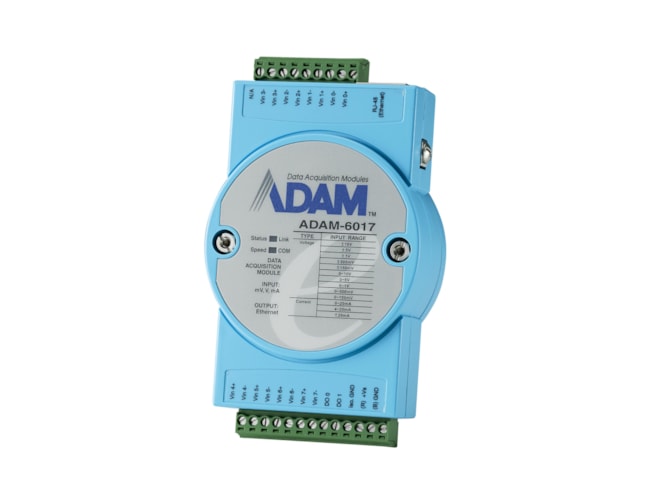

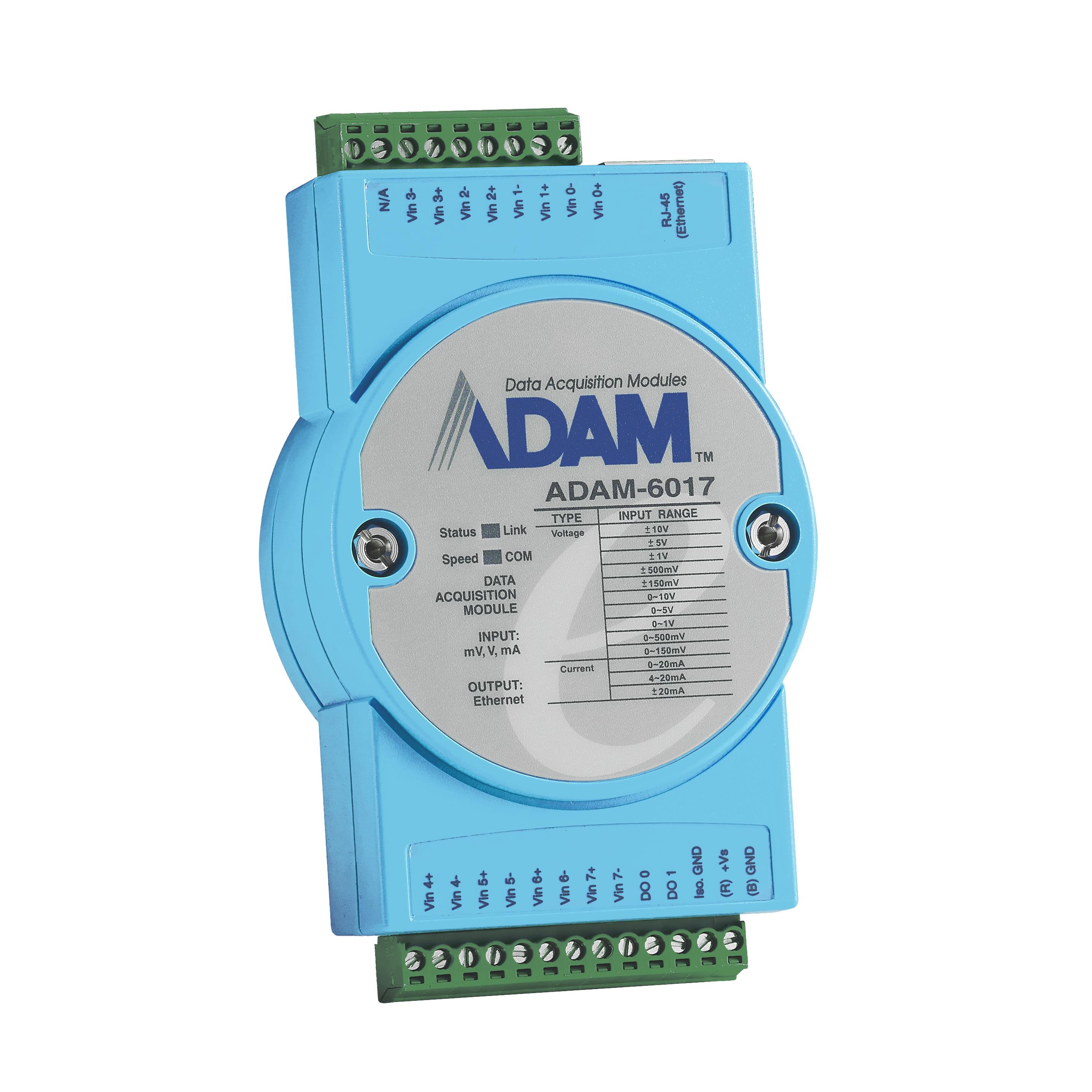

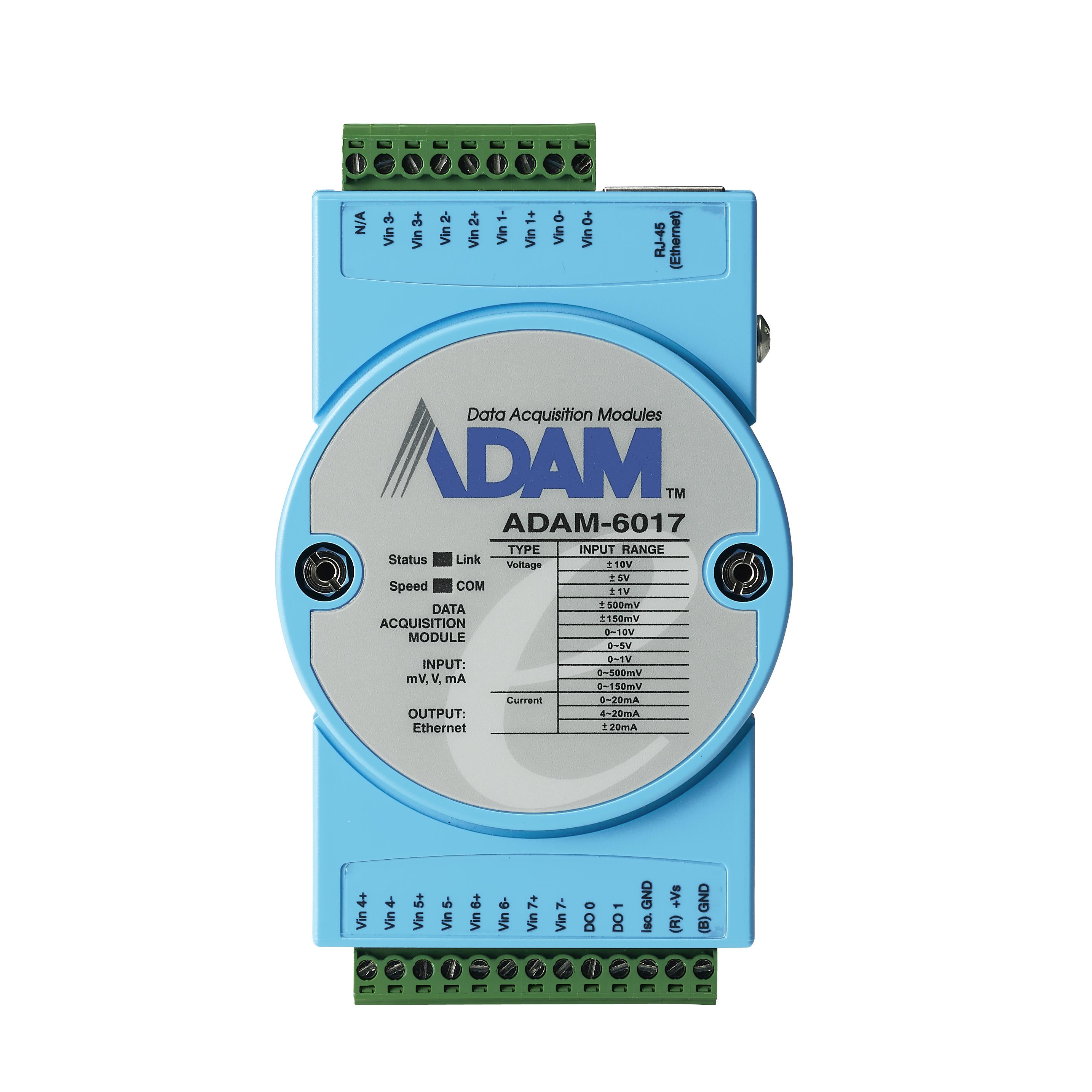

Advantech ADAM-6017-D

Features

• Input Range: ±0.15 V ±0.5 V, ±1 V, ±5 V, ±10 V, ±20 mA, 0~20 mA, 4~20 mA, 0~0.15V, 0~0.5 V, 0~1 V, 0~5 V, 0~10 V
• lnput Type: V, mV, mA
• Resolution(Bits): 16-bit
• Sampling Rates(S/s): 100 S/s (sum)
• Interface: Ethernet
• Isolation Voltage: 2,000 VDC
• Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
• Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
• Output Type: Sink
• Output Voltage: 0~30 VDC
• Sink Current: 100 mA max./channel
• Input Voltage: 10~30 VDC
• 8ch analog input(voltage or current)/2ch digital output
• Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
• GCL to perform basic logic control rules
• Peer-to-Peer function to map I/O status
• Cloud access: Data update to Azure
• Built-in web server
• Watchdog timer to recover the system
