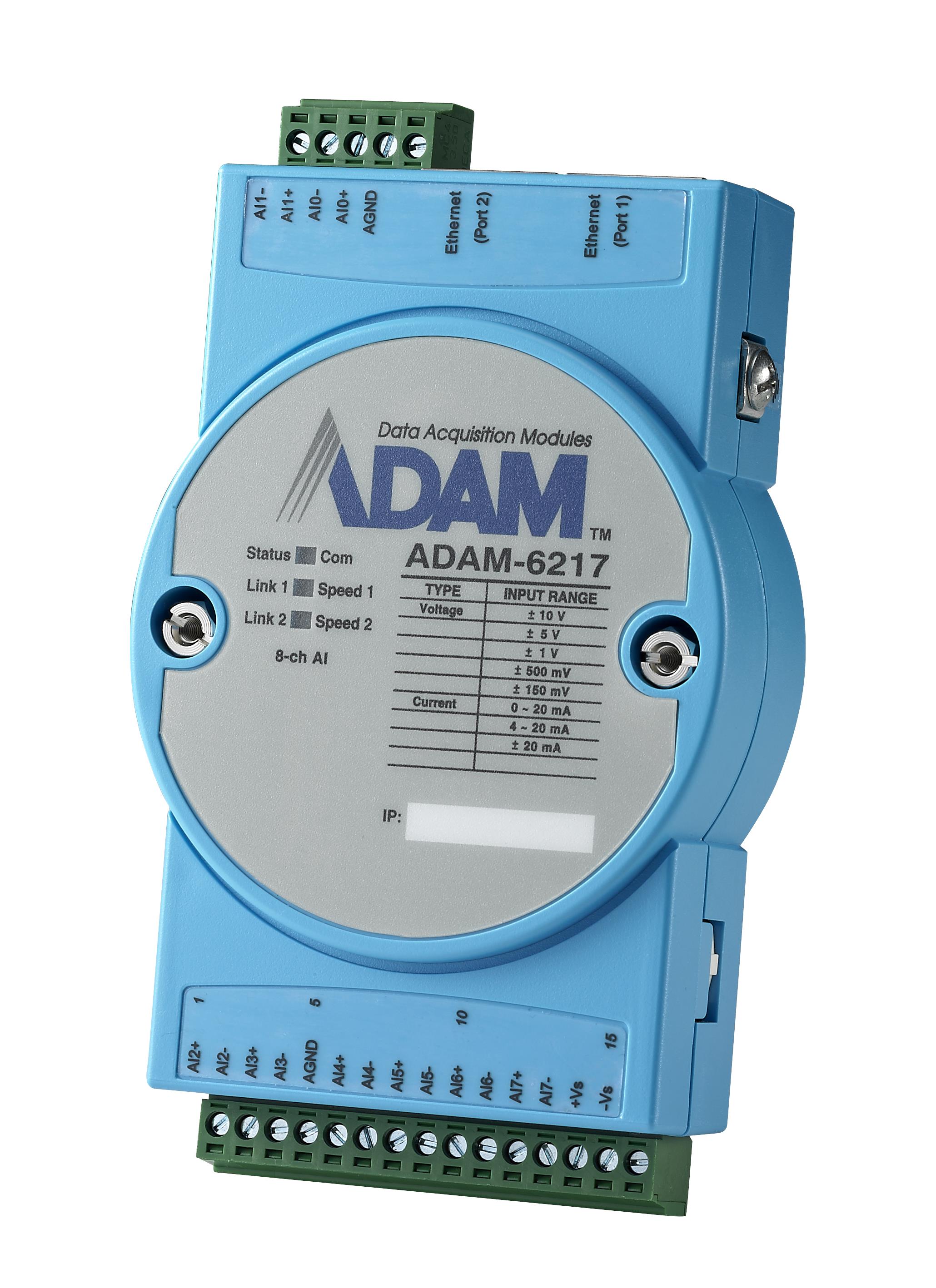

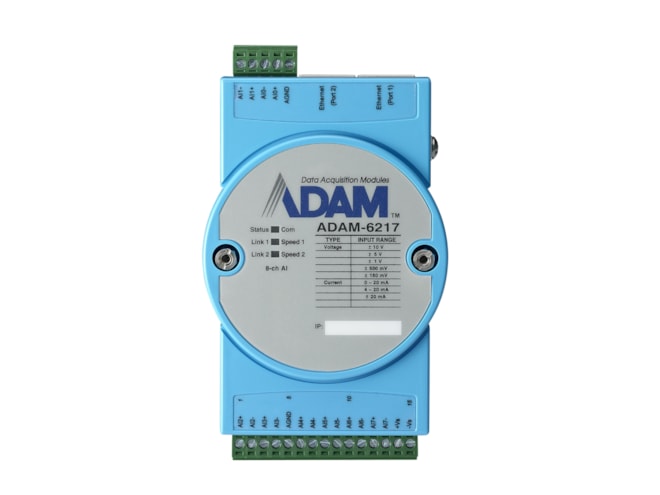

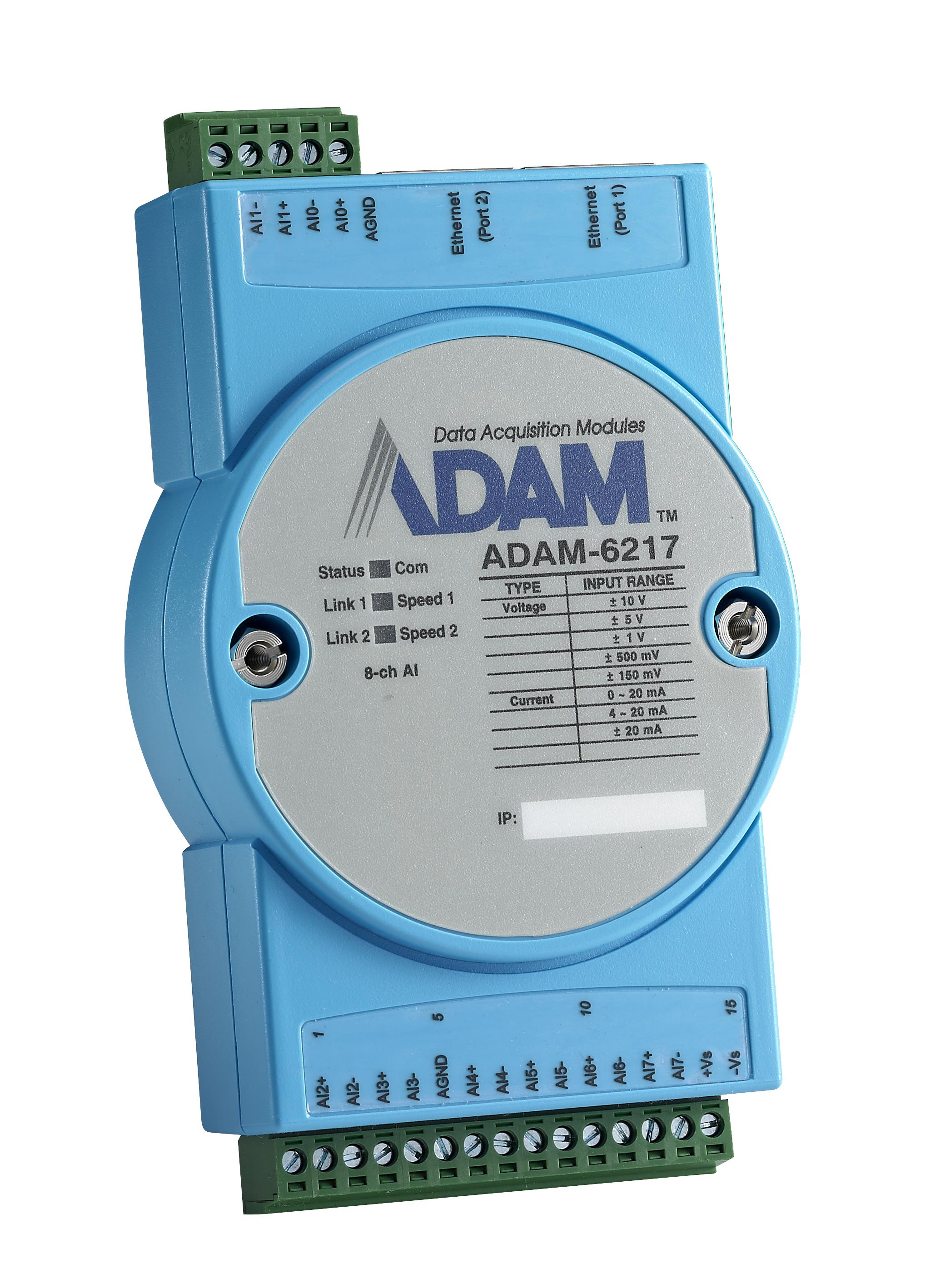

Advantech ADAM-6217-B

8AI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O.

Call for pricing
Part Number
  • ADAM-6217-B
Highlights...

Features

  • Input Range: ±0.15V, ±0.5V , ±1V, ±5V, ±10V, ±20 mA, 0~20 mA, 4~20 mA
  • lnput Type: V, mV, mA
  • Resolution(Bits): 16-bit
  • Sampling Rates(S/s): 10 S/s (sum)
  • Interface: Ethernet
  • Isolation Voltage: 2,500 VDC
  • Connectors: 2 x RJ45, 1 x 15-pin plug-in screw terminal, 1 x 5-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
  • Input Voltage: 10~30 VDC
  • 8ch analog input(voltage or current)
  • Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
  • GCL to perform basic logic control rules
  • Cloud access: Data update to Azure
  • Auto-bypass function to ensure daisy-chain data transmission
  • Peer-to-Peer function to map I/O status
  • Built-in web server
  • Watchdog timer to recover the system
In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.
