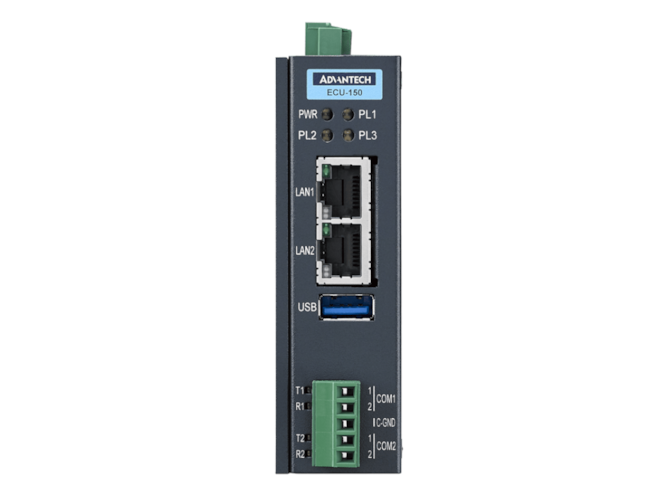

Advantech ECU-150-12A

Features

• Humidity (Storage): 5~95% RH (non-condensing)
• Programming Language: Linux C
• LAN: 2 x 10/100/1000 Base-T Ethernet
• Watchdog Timer: Programmable
• Expansion: 1 x Full-size mPCIe slot
• Certification: CE, FCC, UL
• OS Support: Linux
• Power Input: 10~30 VDC
• Serial Ports: 2 x RS-232/485 (Terminal Block)
• USB Ports: 1 x USB 3.0
• Power Connector: 1 x 3-Pin Terminal Block
• Vibration Protection: 1 Grms, random
• Ingress Protection: IP30
• Isolation Voltage: 2,500 VDC
• SIM card slot: Nano SIM card
• Mounting: Wall, DIN-rail
• Form Factor: Passive Cooling and Front Accessible
• Protocol: OPC-UA Client & Server, DNP3.0 Client & Server,
• IEC-60870-5-104 Master & Slave, IEC-60870-5-101
• Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
• Server
• Grounding Protection: Chassis grounding
• CPU: NXP® ARM® Cortexâ„¢ A53 i.MX8M 1.3 GHz Quad-Core
• Memory: 1 x LPDDR4 with 2 GB
• Enclosure: Aluminum housing, Steel
• Dimension (W x H x D): 100 x 93 x 30 mm
• Storage: 16 GB eMMC
• LED Indicators: Power, LAN (Active, Link), Serial (Tx/Rx), Programmable
• NXP i.MX8M Quad Core Cortex A53 1.3G CPU
• DDR4 2GB RAM, 16GB eMMC for system storage
• 2 x RS-232/485 isolated serial ports
• 2 x 10/100/1000 Ethernet ports
• 1 x Mini-PCIe for WIFI/Cellular/4G
• Support web service for remotely on-line monitoring
• Support SD card & on-line firmware update
• Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol （ECU-150-12A1&ECU-150-12A1U need container EdgeLink）
• Support Data logger on SD card
