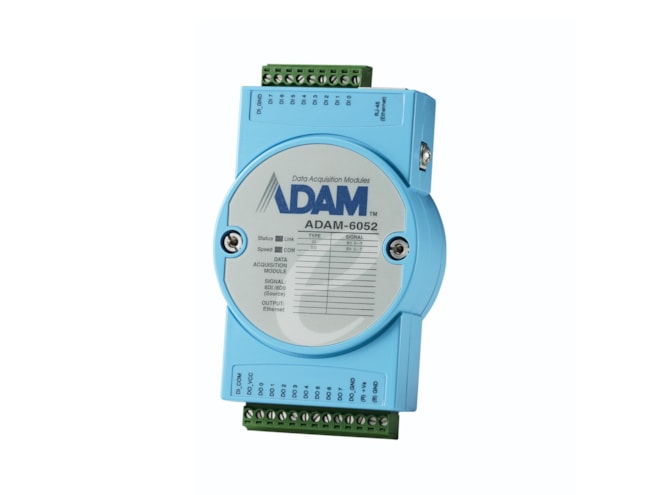

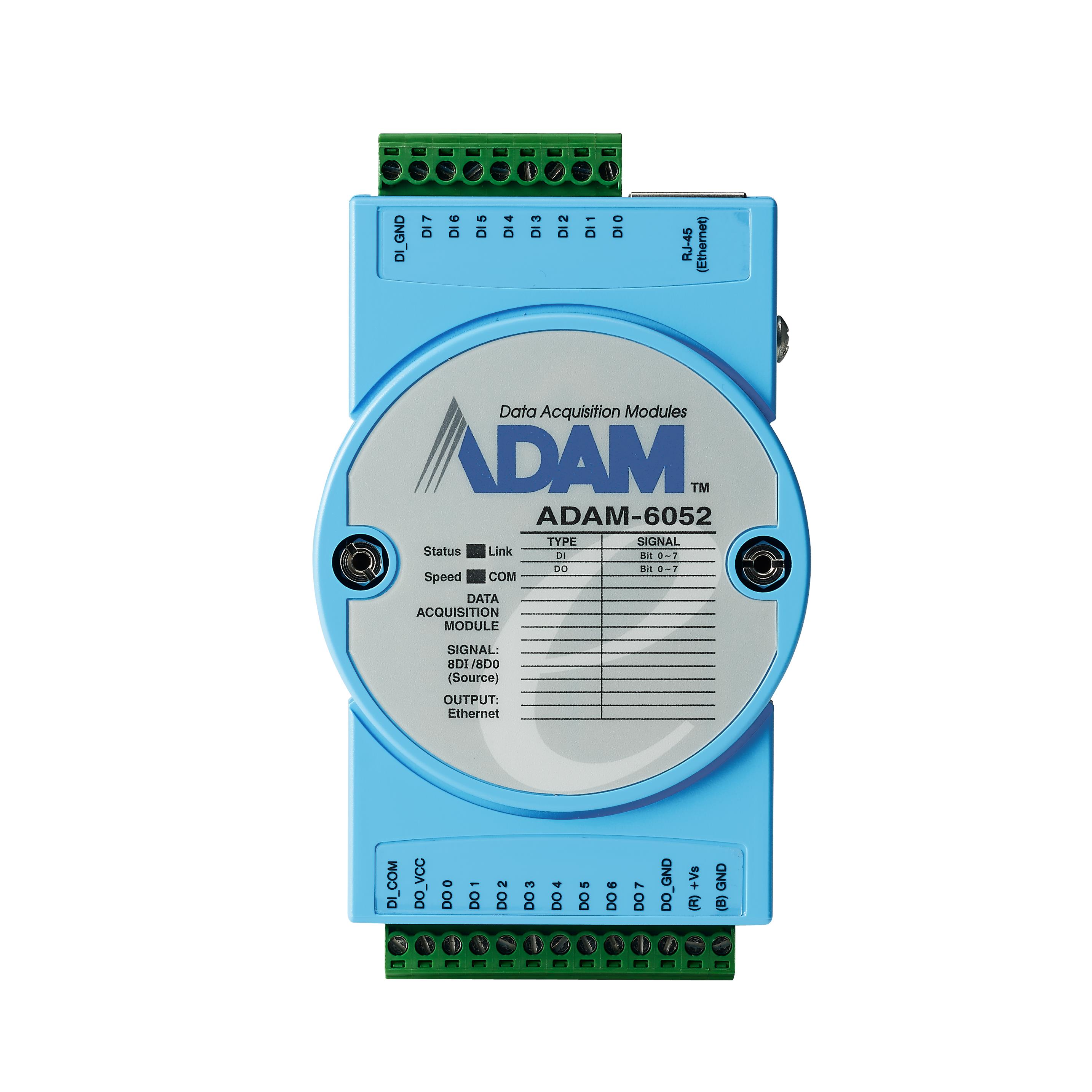

Advantech ADAM-6052-D

8DI/8DO(source type) IoT Modbus/SNMP/MQTT Ethernet Remote I/O.

$265.00
Part Number
  • ADAM-6052-D
Highlights...

Features

  • Interface: Ethernet
  • Isolation Voltage: 2,000 VDC
  • Connectors: 1 x RJ45, 1 x 13-pin plug-in screw terminal, 1 x 9-pin plug-in screw terminal
  • Protocol: Modbus/TCP, TCP/IP, UDP, HTTP, DHCP, MQTT, SNMP, ASCII command
  • Input Voltage: Dry Contact
  • Logic level 0: close to GND
  • Logic level 1: open
  • Wet Contact
  • Logic level 1: 10~30 VDC
  • Logic level 0: 0~3 VDC
  • Output Type: Source
  • Output Voltage: 10~35 VDC
  • Sink Current: 1 A max./channel
  • Input Voltage: 10~30 VDC
  • Max. Input Frequency: 3 kHz
  • 8ch digital input(counter)/8ch source type digital output(pulse output)
  • Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
  • GCL to perform basic logic control rules
  • Peer-to-Peer function to map I/O status
  • Cloud access: Data update to Azure
  • Built-in web server
  • Watchdog timer to recover the system
ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.
