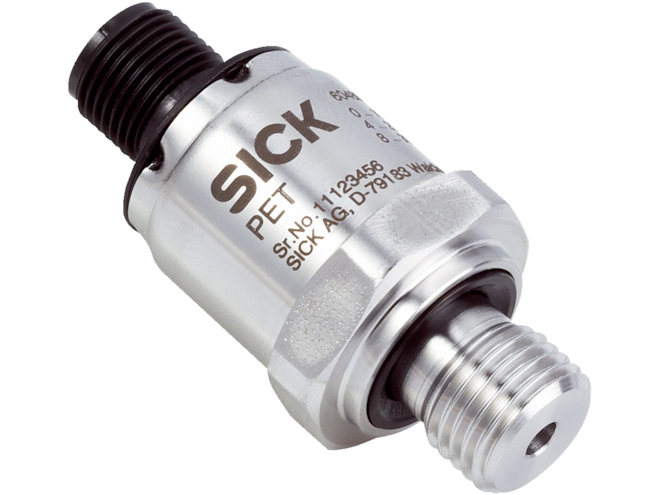

Sick PET-1RB016G1NSVMC Pressure Sensor

Name: Sick PET-1RB016G1NSVMC Pressure Sensor
Price: 8924.0 USD
Availability: BackOrder

Gauge pressure, bar, 0 to 16 bar measuring range. ≤ ± 0.5 %, of span (best fit straight line, BFSL) (for measuring ranges 0 bar ... 6 bar, 0 bar ... 1 non-linearity. View other configurations.

$8,924.00

Effective April 28th, 2025 SICK has added a 7.7% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Part Numbers

PET-1RB016G1NSVMC
6054861

Highlights...

PET-1RB016G1NSVMC
By SICK
FREE Shipping
Call for availability

Features

Gauge pressure pressure type
Bar pressure unit
0 bar to 16 bar measuring range
≤ ± 1.2 % of span (at room temperature) accuracy
≤ ± 0.5 %, of span (best fit straight line, bfsl) (for measuring ranges 0 bar to 6 bar, 0 bar to 10 bar, - 1 bar to 5 bar, - 1 bar to + 9 bar, and 0 psi to 100 psi) non-linearity
G ¼ a process connection
Standard pressure port
–30 °c to +100 °c process temperature
Nbr seal
0 v to 10 v, 3-wire output signal
M12 round connector x 1, 4-pin connection type
Ip67 enclosure rating
50 pieces pieces per package
14 v DC to 30 v DC supply voltage

View other configurations.
