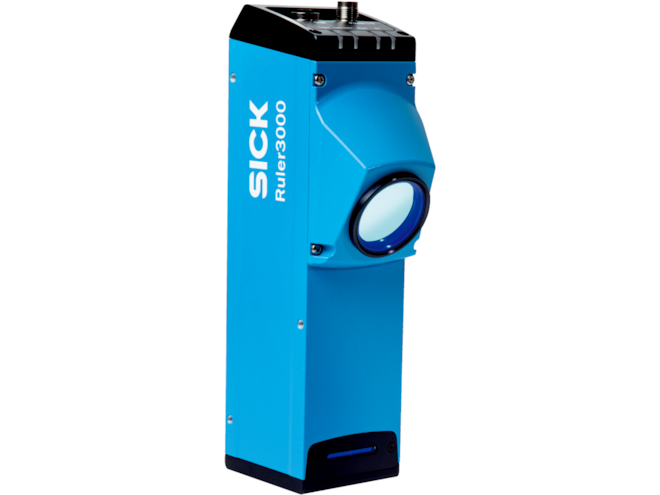

SICK Ruler3000 Series Machine Vision Camera

Industrial 3D camera for fast and accurate image processing. Up to 46000 3D profile scan rate with Ethernet and dual-port fieldbus interface.

This model has 13 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • Ruler3000 Series
Highlights...

Features

  • Sensor type: 3D triangulation / 3D laser triangulation / image analysis
    • Scatter, reflectance measurement
  • Scan/frame rate: 7,000 to 46,000 3D profiles
  • Working distance: up to 1445mm
  • Internal lighting: visible laser
  • Configuration software: Stream Setup
  • Communication interfaces:
    • Ethernet (UDP/IP / TCP/IP / FTP / OPC UA / MQTT), PROFINET (Dual port), EtherNet/IP (Dual port)
  • Factory calibrated
  • GigE Vision and GenICam compliance
  • Enclosure rating: IP65, IP67

The SICK Ruler3000 Series Machine Vision Camera offers high accuracy and measurement speed, an advanced solution for machine vision system integrators and industrial applications. This product family is powered by SICK's unique 3D CMOS sensor for superior image processing, and reliable measurement results. The factory-calibrated sensor extracts the true 3D shape of an object, regardless of its contrast or color. The extensive variants within the Ruler3000 Series offer solutions for a wide range of challenges, with accurate measurement values down to 0.8µm in height, with a resolution of 3200 data points per profile. The guaranteed field-of-view concept, offers easy commissioning. GigE Vision and GenICam compliance ensures cost-effective integration.

Applications

  • Assembly inspection in the electronics industry
  • Weld seam inspection of batteries
  • Packaging control and inline quality inspection
  • Inspection of boards and 3D log measurement in the timber industry
  • Article identification in logistics
  • Robot guided inspection
