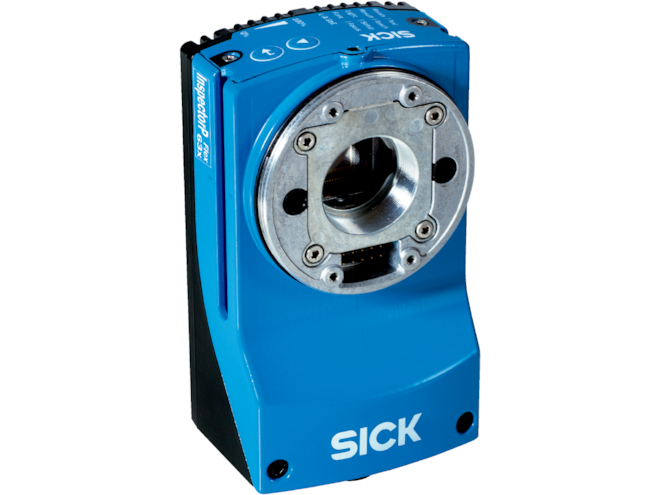

SICK InspectorP63x Series Machine Vision Camera

Camera-based 2D sensor with adjustable focus and IP67 rated housing. Various compatible communication protocols including serial, Ethernet and PROFINET.

This model has 4 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • InspectorP63x Series
Highlights...

Features

  • Sensor type: CMOS matrix sensor, grayscale values
  • Resolution:
    • 1,280px x 1,024px (1.3Mpixel)
    • 1,600px x 1,200px (1.9Mpixel)
  • Optical focus: adjustable focus
  • Operator interface: web server
  • 2x pushbutton control element
  • Communication interface(s):
    • RS-232/RS-422, Ethernet, Ethernet TCP/IP, FTP, HTTP, EtherNet/IP, CAN, PROFINET, PROFINET Single/Dual Port
  • Configuration software: SICK AppStudio
  • HALCON runtime license and SICK Algorithm Library
  • Dimensions: 108mm x 63mm x 46mm
  • Enclosure rating: IP67

The SICK InspectorP63x Series Machine Vision Camera is an industrial programmable and configurable 2D vision camera suitable for most vision tasks. The 1 to 2 megapixel image resolution, compact IP67 housing, and flexible high-end optical design permits the use of this product family in demanding automation environments. The application software is fully flexible thanks to the SICK AppSpace development environment, with image processing powered by HALCON and the SICK Algorithm Library. Lens and illumination components can be ordered separately, contact a Motion World engineer for assistance.

Applications

  • Robot picking
  • Precise part positioning
  • Quality inspection of shapes and dimensions
  • Defect and part presence detection
  • Calibrated, high-accuracy measurements
  • Track and trace by code reading and OCR
