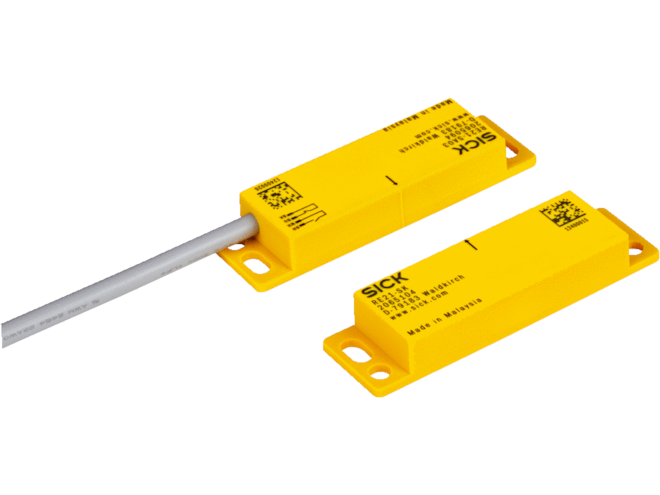

SICK RE2 Series Safety Switch

Name: SICK RE2 Series Safety Switch
Price: 61.0 USD
Availability: BackOrder

Safety switch with 9mm response range and magnetic actuation. NO and NC reed contacts, with LED status indicator. PL e / Cat. 4 performance.

Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.

Part Number

RE2 Series

Highlights...

RE2 Series
By SICK
FREE Shipping on orders of $1,000 or more
Some models in stock. View available part numbers.

Features

Actuator coding level: Low coding level (EN ISO 14119)
Response range: up to 9mm
Type of output: reed contacts
NO contacts: 1 / 2
NC contacts: 1 / 0
LED status indicator (RE27)
Connection type(s):
- Cable with M8 male connector, 4-pin
- Plug connector, M8, 4-pin
- Cable with M12 male connector, 4-pin
- Cable with plug M12, 8-pin
- *Flexi Loop-compatible safe series connection available
PL e / Cat. 4 (EN ISO 13849)

The SICK RE2 Series Safety Switch operates through coded magnetic actuation of the complementary NC/NO reed contacts or equivalent N/O reed contacts. These switches are used in areas where a high level of contamination occurs. They are simple to clean, thereby enabling high standards of hygiene. Their principle of operation enables greater tolerances, making them well-suited for applications where precise guidance of guards is difficult.
