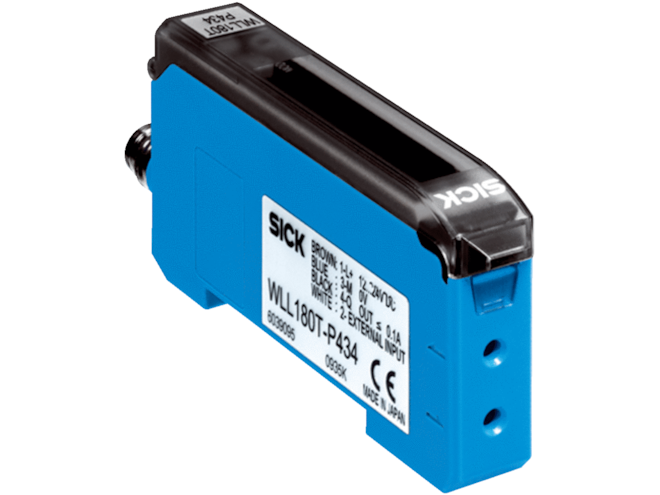

SICK WLL180 Series Fiber-Optic Sensor

Fiber-optic sensor with high operating reserve and resolution. Up to 20m max sensing range in through-beam system configuration. Adjustable hysteresis.

This model has 42 variants.
Effective April 28th, 2025 SICK has added a 7.7% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • WLL180 Series
Highlights...

Features

  • Functional principle: depends on fiber cable used
  • Light: LED, infrared / visible red
  • Response time: 16µs
  • Sensing range max: *depends on fiber used
    • 20m with through-beam measurement
    • 1m with proximity measurement
  • Switching mode: light/dark
  • Adjustment: teach-in button, cable, menu-controlled
  • Two 4-digit displays (rotatable screen)
  • Adjustable hysteresis
  • Anti-interference logic
  • Multi-functional input (model dependent)
  • IP50-rated plastic enclosure
  • Dimensions: 10.5mm x 34.6mm x 71.9mm

The SICK WLL180 Series Fiber-Optic Sensor offers a high operating reserve and resolution, with fast response times down to 16μs. Adjustment methods are straightforward as well as versatile, via a teach-in button on the unit or external teach-in via cable input. Hysteresis and time delays are configurable to suit system needs, such as the detection of extremely small or transparent targets. The two, 4-digit displays present a user-friendly interface to showcase programming steps, status updates and target vs. actual values. Units feature anti-interference logic. The WLL180 Series comes in stand-alone variants, or with an internal bus for networking with other sensors. In this configuration, settings for the WLL180 Series can be mapped over to any other bus-connected devices.
