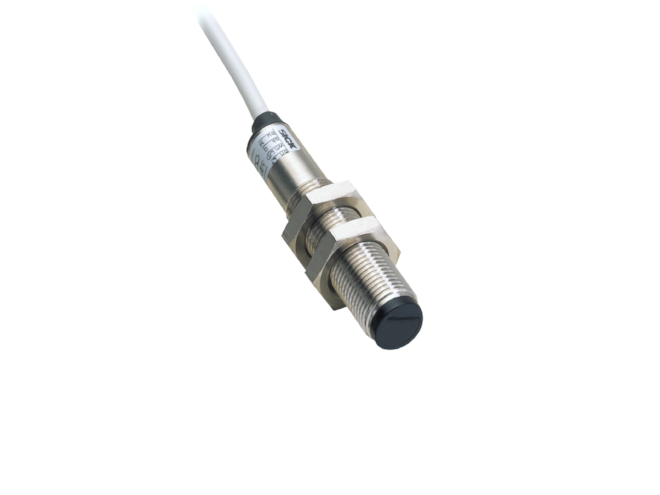

SICK V12 Series Photoelectric Sensor

Highly compact photoelectric sensor with M12 metal housing and –25 to 70°C operating range. Ideal for use in parts detection and metal-forming applications.

This model has 17 variants.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Number
  • V12 Series
Highlights...

Features

  • Functional principle(s):
    • Photoelectric proximity sensor
    • Photoelectric retro-reflective sensor
    • Photoelectric through-beam sensor
  • Functional principle detail: Energetic
  • Light source: LED
  • Switching output(s): NPN, PNP
  • Switching mode: light/dark, light
  • Adjustment: Teach-in button/cable, none
  • Enclosure ratings: IP67
    • M12 metal housing
  • Dimensions:
    • Down to 12mm x 12mm x 54.5mm (dependent on model)

The SICK V12 Series Photoelectric Sensor features compact, M12 metal housing ideal for tight installation spaces such as in tool and die detection. There are two teach-in modes, one for standard applications, and the second for for more precise detection involving small movements. The V12 Series sensor is ideally suited to parts detection in the metal-forming and robotics industry. Various alternative connection systems, interfaces (10 to 30VDC, PNP or NPN output, light or dark switching output), and high switching frequencies make this product line highly adaptable to specific requirements. A reserve indicator is available with most configurations for commissioning and maintenance assistance. The durable enclosure and –25 to 70°C operating range offers reliable use in harsh environments.
