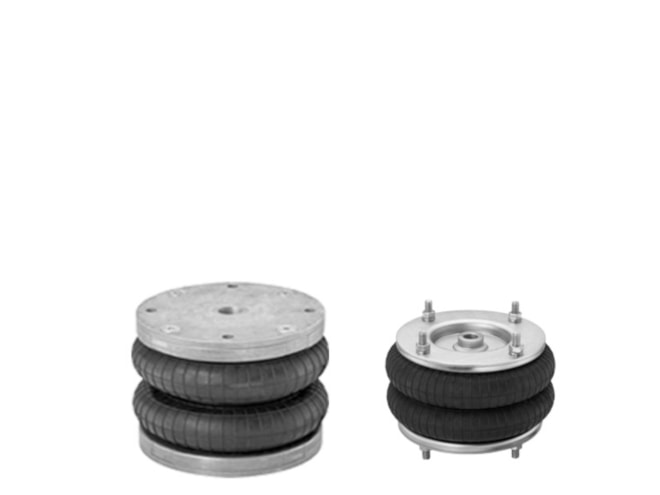

Aventics BCC-DB-125-075-0CR-AL-G038 Pneumatic Linear Actuator

Bellow actuator with cover, Bellow actuator. View other configurations.

Aventics BCC-DB-125-075-0CR-AL-G038 Pneumatic Linear Actuator — Aventics-BCC-DB-125-075-0CR-AL-G038

$267.73

Part Numbers

BCC-DB-125-075-0CR-AL-G038
R414000188

Highlights...

BCC-DB-125-075-0CR-AL-G038
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 2-3 weeks

Features

Bellow Cylinder type: Bellow actuator with mounting ring and cover
Bellows: double
Compressed air connection: G 3/8
Cylinder Function: Single-acting, retracted without pressure
Force max.: 5700 N
Force min.: 2400 N
Industry: Industrial
Installation height max.: 65 mm
Installation height min.: 140 mm
Material bellow: Chloroprene rubber
Material Frontcover: Aluminum
Max Working Pressure: 8 bar
Dimension: 4.45x4.57x3.78 (inches)

View other configurations.

AVENTICS Series BCC R414000188
