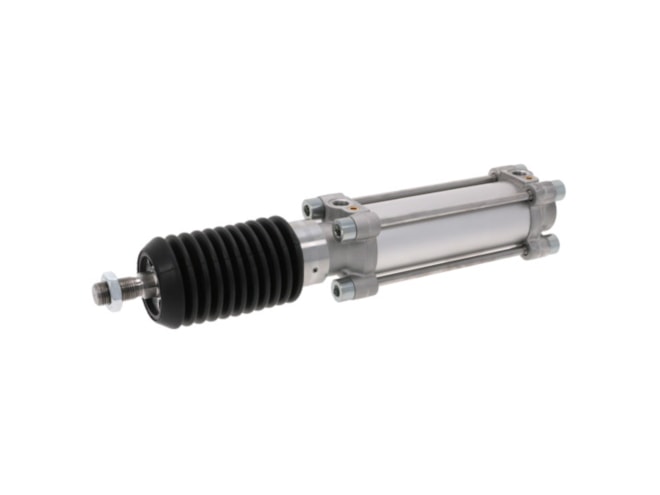

Aventics TRB-DA-063-0125-0122119100000000000000-B Pneumatic Linear Actuator

Tie rod cylinder, Piston rod cylinders, ISO cylinder, Low friction, ISO 15552. View other configurations.

Aventics TRB-DA-063-0125-0122119100000000000000-B Pneumatic Linear Actuator — Aventics-TRB-DA-063-0125-0122119100000000000000-B

$641.36

Part Numbers

TRB-DA-063-0125-0122119100000000000000-B
R481602165

Highlights...

TRB-DA-063-0125-0122119100000000000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 63 mm
Compressed air connection: G 3/8
Cushioning: Pneumatic adjustable cushioning
Cylinder Features: Bellows
Cylinder Function: Double-acting
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1960 N
Piston force retracting: 1765 N
Piston rod modification: single
Piston rod thread: M16x1,5
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 125 mm

View other configurations.

AVENTICS Tie rod cylinder ISO 15552, Series TRB R481602165
