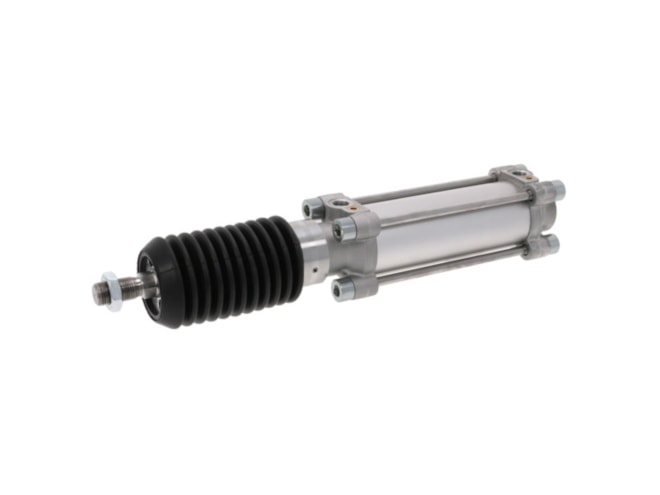

Aventics TRB-DA-040-0100-0122119100000000000000-B Pneumatic Linear Actuator

Low friction, ISO cylinder, ISO 15552, Tie rod cylinder, Piston rod cylinders. View other configurations.

Aventics TRB-DA-040-0100-0122119100000000000000-B Pneumatic Linear Actuator — Aventics-TRB-DA-040-0100-0122119100000000000000-B

$500.97

Part Numbers

TRB-DA-040-0100-0122119100000000000000-B
R481602142

Highlights...

TRB-DA-040-0100-0122119100000000000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 40 mm
Compressed air connection: G 1/4
Cushioning: Pneumatic adjustable cushioning
Cylinder Features: Bellows
Cylinder Function: Double-acting
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 790 N
Piston force retracting: 660 N
Piston rod modification: single
Piston rod thread: M12x1,25
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 100 mm

View other configurations.

AVENTICS Tie rod cylinder ISO 15552, Series TRB R481602142
