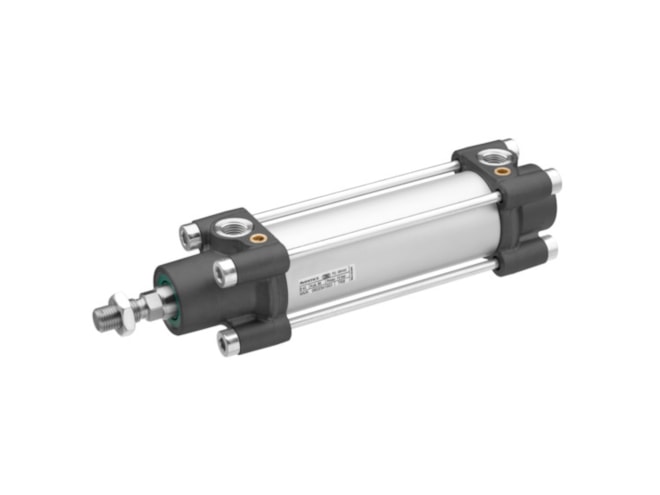

Aventics TRB-DA-100-0250-0122111200000000000200-B Pneumatic Linear Actuator

Tie rod cylinder, ISO cylinder, Piston rod cylinders, ISO 15552, Low friction. View other configurations.

Aventics TRB-DA-100-0250-0122111200000000000200-B Pneumatic Linear Actuator — Aventics-TRB-DA-100-0250-0122111200000000000200-B

$768.17

Part Numbers

TRB-DA-100-0250-0122111200000000000200-B
R480692114

Highlights...

TRB-DA-100-0250-0122111200000000000200-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 100 mm
Compressed air connection: G 1/2
Cushioning: Pneumatic adjustable cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, High corrosion
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 4945 N
Piston force retracting: 4635 N
Piston rod modification: single
Piston rod thread: M20x1,5
Piston rod thread type: External thread
Scraper Type: Metal Scraper
Stroke Length: 250 mm
Dimension: 18.90x4.72x4.72 (inches)

View other configurations.

AVENTICS Tie rod cylinder ISO 15552, Series TRB R480692114
