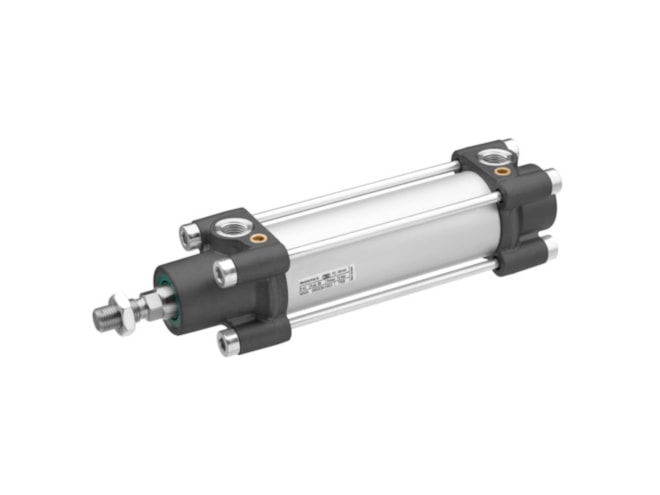

Aventics TRB-DA-080-0200-0122111200000000000200-B Pneumatic Linear Actuator

ISO 15552, ISO cylinder, Low friction, Piston rod cylinders, Tie rod cylinder. View other configurations.

Aventics TRB-DA-080-0200-0122111200000000000200-B Pneumatic Linear Actuator — Aventics-TRB-DA-080-0200-0122111200000000000200-B

$591.29

Part Numbers

TRB-DA-080-0200-0122111200000000000200-B
R480692102

Highlights...

TRB-DA-080-0200-0122111200000000000200-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 80 mm
Compressed air connection: G 3/8
Cushioning: Pneumatic adjustable cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, High corrosion
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 3165 N
Piston force retracting: 2855 N
Piston rod modification: single
Piston rod thread: M20x1,5
Piston rod thread type: External thread
Scraper Type: Metal Scraper
Stroke Length: 200 mm
Dimension: 16.14x3.94x3.94 (inches)

View other configurations.

AVENTICS Tie rod cylinder ISO 15552, Series TRB R480692102
