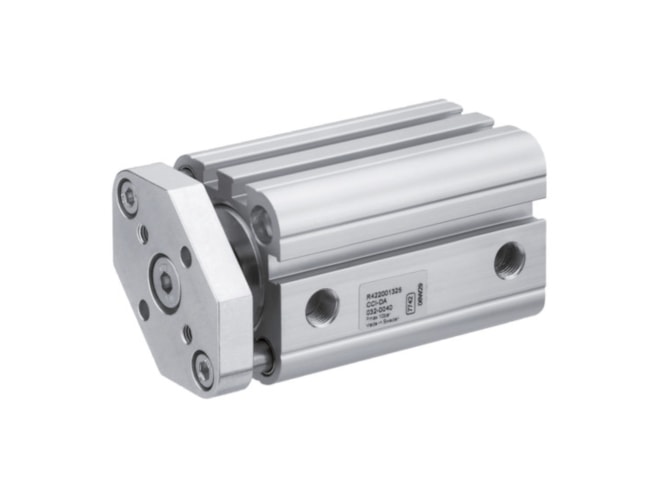

Aventics CCI-DA-050-0025-0071224110000200000000-B Pneumatic Linear Actuator

ISO cylinder, Piston rod cylinders, Standard cylinders, ISO 21287, Compact cylinder, multi-position cylinder. View other configurations.

Aventics CCI-DA-050-0025-0071224110000200000000-B Pneumatic Linear Actuator — Aventics-CCI-DA-050-0025-0071224110000200000000-B

$238.13

Part Numbers

CCI-DA-050-0025-0071224110000200000000-B
R422001307

Highlights...

CCI-DA-050-0025-0071224110000200000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 50 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1237 N
Piston force retracting: 1110 N
Piston rod modification: non-rotating, with front plate
Piston rod thread: M10
Piston rod thread type: Internal thread
Scraper Type: Standard Industry Scraper
Stroke Length: 25 mm
Dimension: 3.54x2.76x2.76 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001307
