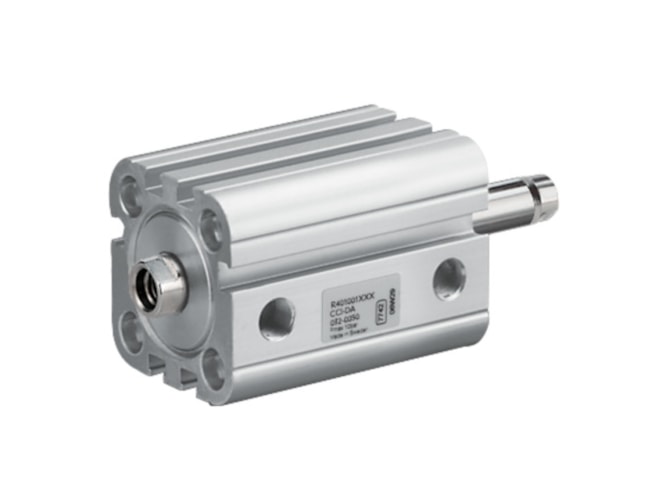

Aventics CCI-DA-040-0015-0041234110000200000000-B Pneumatic Linear Actuator

Compact cylinder, ISO cylinder, Standard cylinders, ISO 21287, multi-position cylinder, Piston rod cylinders. View other configurations.

Aventics CCI-DA-040-0015-0041234110000200000000-B Pneumatic Linear Actuator — Aventics-CCI-DA-040-0015-0041234110000200000000-B

Call for pricing

Part Numbers

CCI-DA-040-0015-0041234110000200000000-B
R422001716

Highlights...

CCI-DA-040-0015-0041234110000200000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 40 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 560 N
Piston force retracting: 560 N
Piston rod modification: through
Piston rod thread: M8
Piston rod thread type: Internal thread
Scraper Type: Standard Industry Scraper
Stroke Length: 15 mm
Dimension: 3.54x1.97x1.97 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001716
