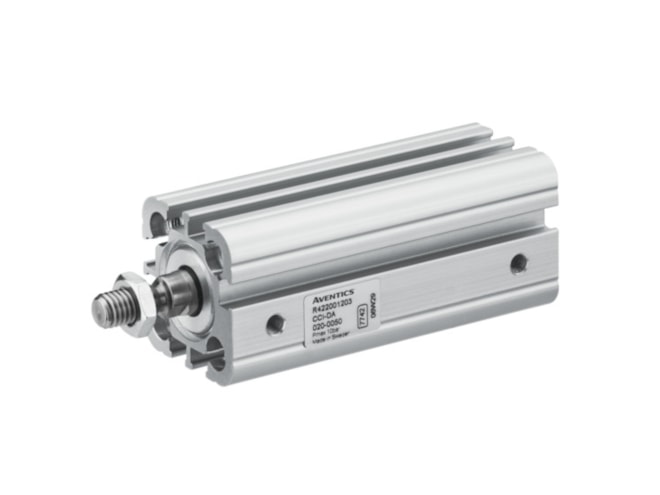

Aventics CCI-DA-100-0020-0041224110000000000028-B Pneumatic Linear Actuator

Compact cylinder, ISO cylinder, ISO 21287, multi-position cylinder, Standard cylinders, Piston rod cylinders. View other configurations.

Aventics CCI-DA-100-0020-0041224110000000000028-B Pneumatic Linear Actuator — Aventics-CCI-DA-100-0020-0041224110000000000028-B

$279.87

Part Numbers

CCI-DA-100-0020-0041224110000000000028-B
R422001170

Highlights...

CCI-DA-100-0020-0041224110000000000028-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 100 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 4948 N
Piston force retracting: 4639 N
Piston rod modification: single
Piston rod thread: M16x1,5
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 20 mm
Dimension: 4.53x4.53x5.12 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001170
