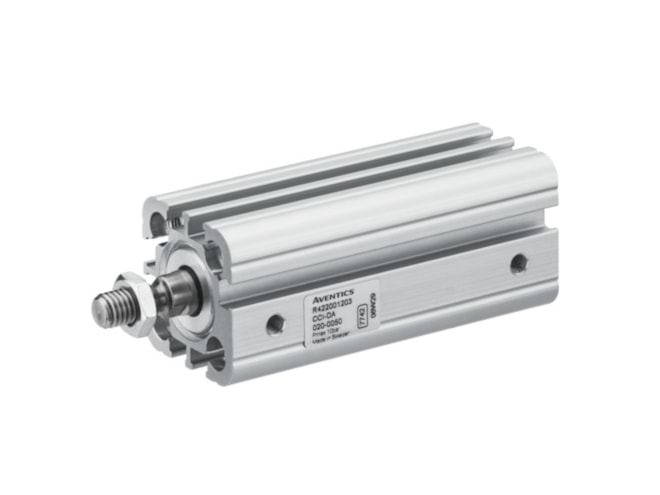

Aventics CCI-DA-063-0030-0041224110000000000022-B Pneumatic Linear Actuator

ISO cylinder, Standard cylinders, Compact cylinder, multi-position cylinder, Piston rod cylinders, ISO 21287. View other configurations.

Aventics CCI-DA-063-0030-0041224110000000000022-B Pneumatic Linear Actuator — Aventics-CCI-DA-063-0030-0041224110000000000022-B

$180.34

Part Numbers

CCI-DA-063-0030-0041224110000000000022-B
R422001188

Highlights...

CCI-DA-063-0030-0041224110000000000022-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 63 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1964 N
Piston force retracting: 1837 N
Piston rod modification: single
Piston rod thread: M12x1,25
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 30 mm
Dimension: 3.15x2.76x2.76 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001188
