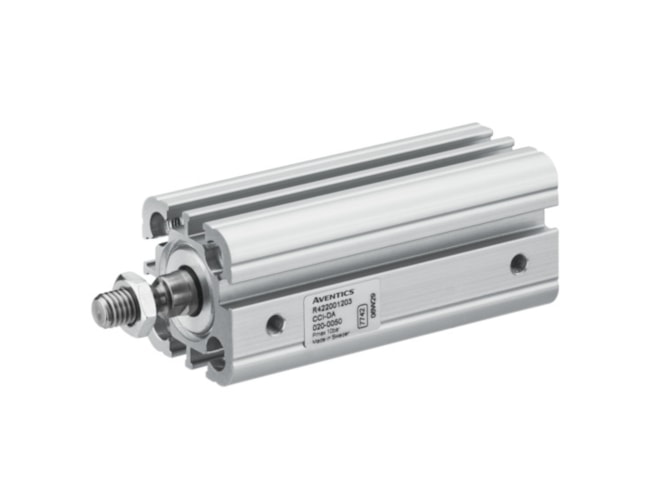

Aventics CCI-DA-025-0030-0041224110000000000016-B Pneumatic Linear Actuator

Compact cylinder, ISO cylinder, multi-position cylinder, Piston rod cylinders, ISO 21287, Standard cylinders. View other configurations.

Aventics CCI-DA-025-0030-0041224110000000000016-B Pneumatic Linear Actuator — Aventics-CCI-DA-025-0030-0041224110000000000016-B

$85.75

Part Numbers

CCI-DA-025-0030-0041224110000000000016-B
R422001184

Highlights...

CCI-DA-025-0030-0041224110000000000016-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 25 mm
Compressed air connection: M5
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 309 N
Piston force retracting: 260 N
Piston rod modification: single
Piston rod thread: M8x1,25
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 30 mm
Dimension: 3.54x1.57x1.57 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001184
