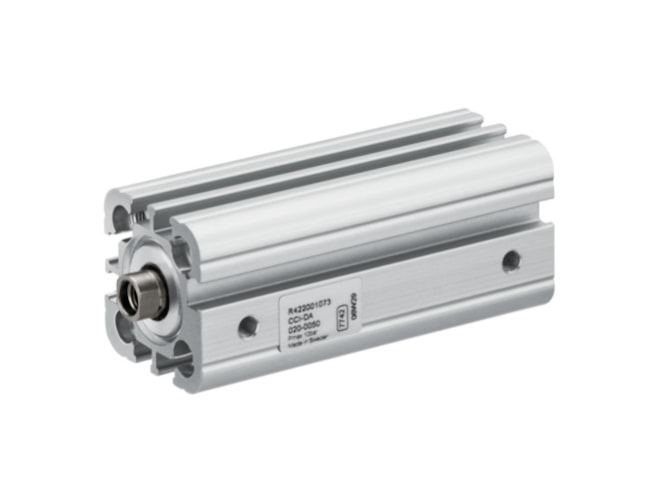

Aventics CCI-DA-050-0150-0041224110000200000000-B Pneumatic Linear Actuator

ISO cylinder, Standard cylinders, multi-position cylinder, ISO 21287, Piston rod cylinders, Compact cylinder. View other configurations.

Aventics CCI-DA-050-0150-0041224110000200000000-B Pneumatic Linear Actuator — Aventics-CCI-DA-050-0150-0041224110000200000000-B

$223.71

Part Numbers

CCI-DA-050-0150-0041224110000200000000-B
R422001127

Highlights...

CCI-DA-050-0150-0041224110000200000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 50 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1237 N
Piston force retracting: 1110 N
Piston rod modification: single
Piston rod thread: M10
Piston rod thread type: Internal thread
Scraper Type: Standard Industry Scraper
Stroke Length: 150 mm
Dimension: 3.90x3.90x3.90 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001127
