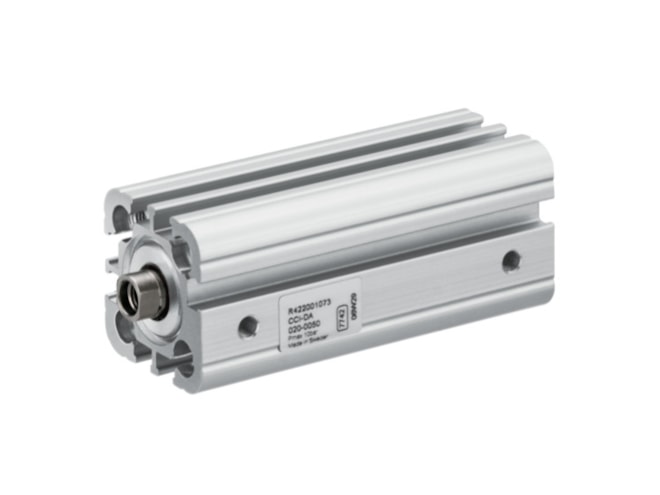

Aventics CCI-DA-025-0015-0041224110000200000000-B Pneumatic Linear Actuator

ISO 21287, Compact cylinder, Piston rod cylinders, Standard cylinders, multi-position cylinder, ISO cylinder. View other configurations.

Aventics CCI-DA-025-0015-0041224110000200000000-B Pneumatic Linear Actuator — Aventics-CCI-DA-025-0015-0041224110000200000000-B

$81.28

Part Numbers

CCI-DA-025-0015-0041224110000200000000-B
R422001024

Highlights...

CCI-DA-025-0015-0041224110000200000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 25 mm
Compressed air connection: M5
Cushioning: Elastic cushioning
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 309 N
Piston force retracting: 260 N
Piston rod modification: single
Piston rod thread: M6
Piston rod thread type: Internal thread
Scraper Type: Standard Industry Scraper
Stroke Length: 15 mm
Dimension: 1.97x1.57x1.57 (inches)

View other configurations.

AVENTICS Compact cylinder ISO 21287, Series CCI R422001024
